Product Introduction

SP-430G-ZD

Laceloop Machine

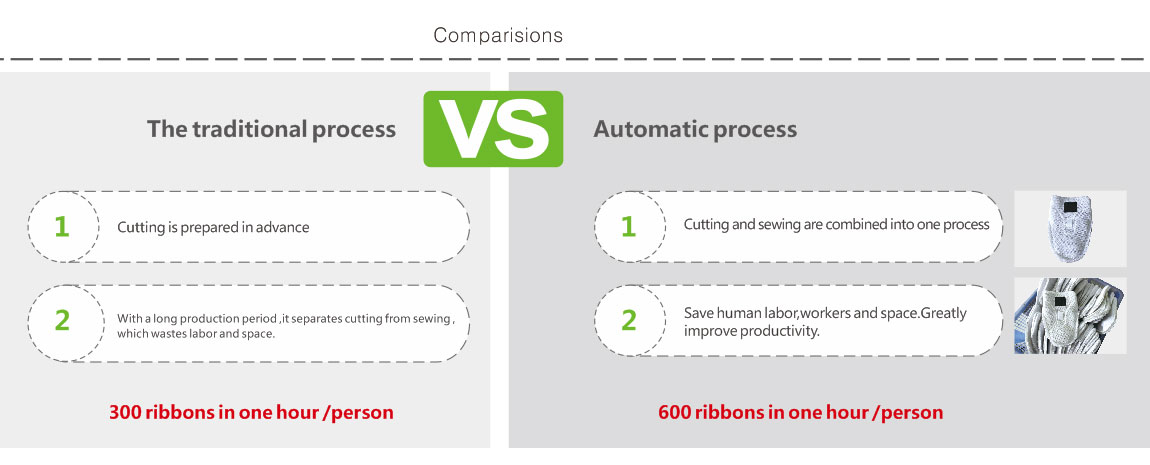

Laceloop Machine reduces cost, simplifies operation and stitches beautiful lines compared with traditional sewing. It has procedures

like automatic feeding,automatic folding, automatic cutting, automatic sewing and automatic claiming using hot cutting or

cold cutting skills. It’s mainly applied in processing of shoes, which needs only 6 seconds for one tongue.

Efficient Beautiful

  • Combined esthetics with efficiency,this machine will be the top choice of ribbon loom in shoe industry.
  • Sewing Area :Y direction 18-22mm,X direction8-12mm.

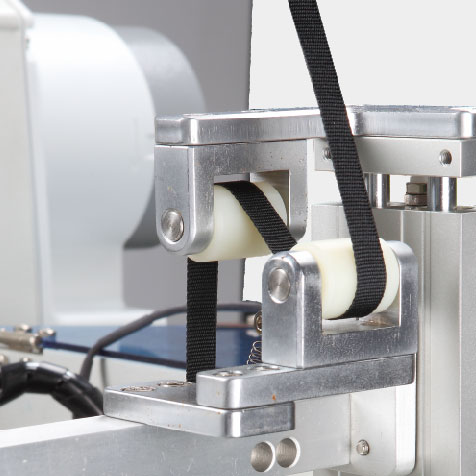

Auxiliary feeding device

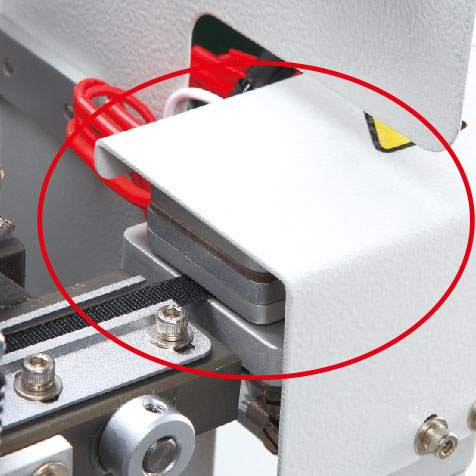

Ribbon ironing device heated by electric

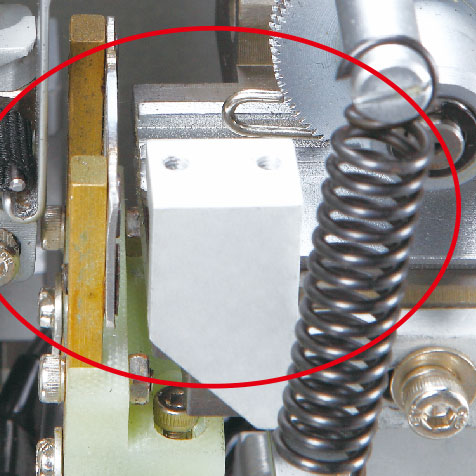

Standard cold cut or hot cut device

Automatic folding device

Technical Parameters

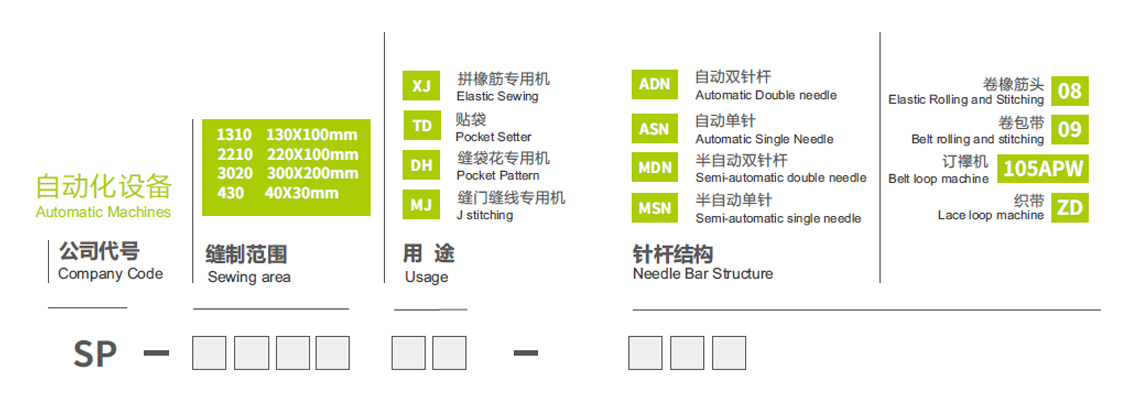

Model and Standard +

  • Model
    Application
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Foot presser lifting method
    Rising amount of intermittent foot presser
    Rotating shuttle
    Thread Wiper
    Cutting device
    Number of cycle programs
    Motor
    Power
  • SP-430G-ZD
    Laceloop Machine
    Single-needle flat seam
    3200rpm
    X:8~12mm Y:18~ 22mm
    Intermittent feeding (driven by pulse motor)
    0.05~12.7mm
    5000 needles/1 pattern
    Presser foot drive
    Max.17mm
    Shuttle hook
    Standard facility
    Standard facility
    30 cycles(50 programs for each)
    AC servomotor 550W
    Single phase200~240V
