Product Introduction

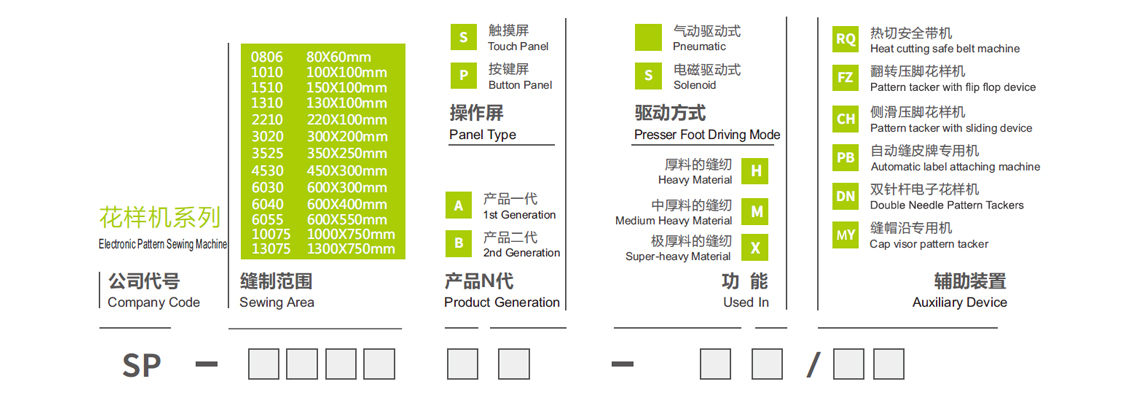

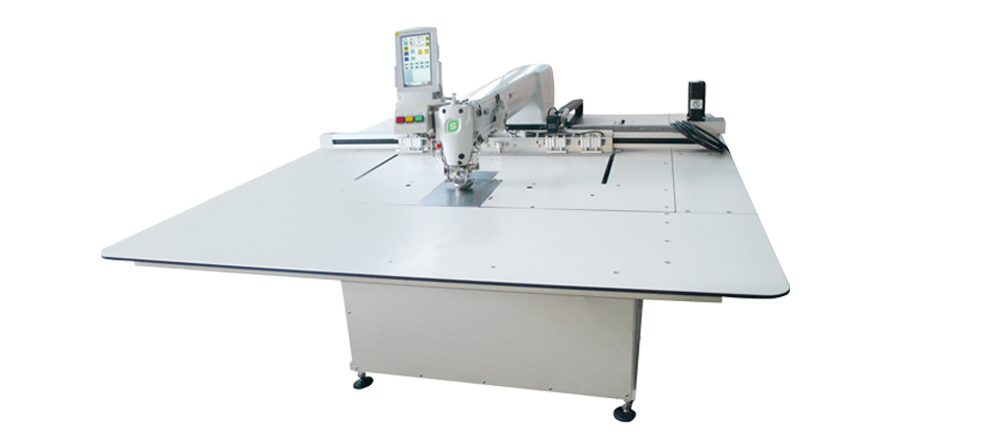

SP-10075/13075BS

Electronic Pattern Tacker

  • SP-10075BS-M
  • SP-10075BS-ML
  • SP-10075BS-HL
  • SP-13075BS-M
  • SP-13075BS-HL
  • SP-13075BS-ML
  • Video1
  • Video2

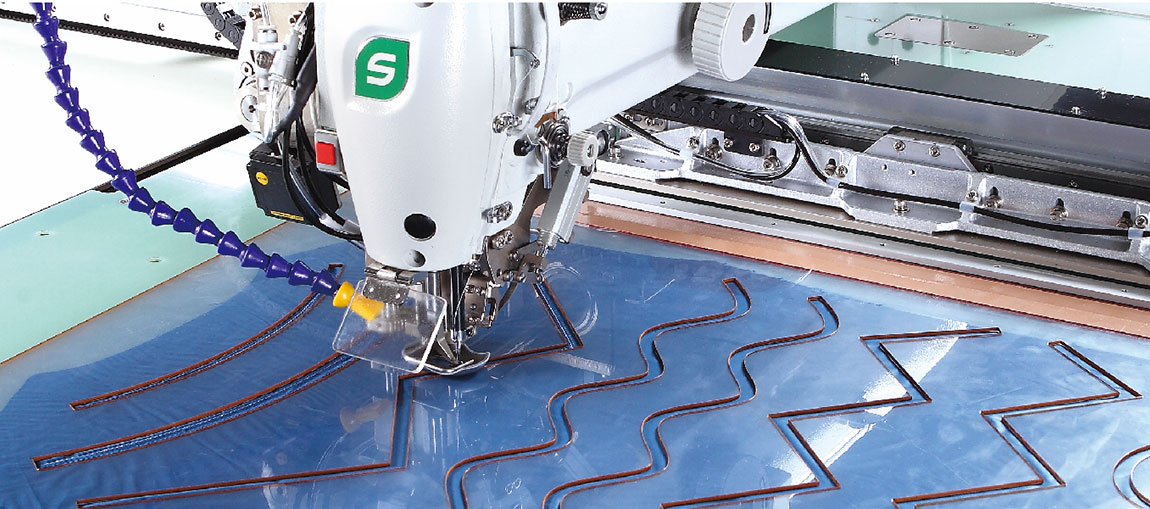

Equipped with serve-control feeding mechanism ,the machine has accurate stitching point,which enables high-accuracy sewing while

sewing in high speed and thick fabric.This device prevents the position from moving ,an mistake in traditional sewing.

Characters

  • Direct programming
  • With skipping seam function
  • Direct drive mode
  • Two kinds of programming softwares inside touchscreen
  • Broken thread detector
  • Support bar code scanning (optional)

  • Circular Knife Cutting (more stable)
  • The needle bar is free of oil (which makes the material not contaminated with oil).
  • Variable multi segment line tension
  • Realize back and forth sewing with stable stitch
  • Back and forth sewing to improve production efficiency
  • No stitch skipping and loosing

Achieve diversified stitching based on large sewing area

Max. sewing area 1000×750mm,available for different kinds of down clothes ,leather bag,air bag and leisure textile,also combination sewing of small parts such as shoes and clothes.

Characters

  • Adjustable take-up lever ,which can adjust stroke according to fabric types,can be applied to wider range.
  • Upper thread holding function prevent the machine from loosing thread at the start,which reduce the problems of bird net stitching lines.
  • Setting the tension of lines by stages during stitching ,the electric tension device(optional ) ensures better and stable stitching lines. be applied to wider range.
  • THK straight guiding rail ,used in X,Y direction ,helps to sew with stable performance ,lower noise and accuracy error less than 0.01mm.

Advanced and high-level devices

With sewing area 1000mm×750mm ,this machine is able to sew materials of big area like bags and air bags and multi-objects like shoes and clothes .Equipped with serve-control feeding mechanism ,the machine has accurate stitching point,which enables high-accuracy sewing while sewing in high speed and thick fabric.This device prevents the position from moving ,an mistake in traditional sewing.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Thread Wiper
    Thread Clamping Device
    Cutting device
    Foot pressure
    Press foot height
    Hook
  • SP-10075BS-M
    Single needle flat seam
    2,500 rpm
    Max.1000×750 mm
    Standard facility
    Variable tension of multi segments
    Circular Cutting Knife
    Auxiliary presser foot + medium presser foot
    20mm
    Heavy material standard hook
  • SP-10075BS-ML
    Single needle flat seam
    2,500 rpm
    Max.1000×750 mm
    Standard facility
    Variable tension of multi segments
    Circular Cutting Knife
    Auxiliary presser foot + medium presser foot
    20mm
    Heavy material double shuttle hook
  • SP-10075BS-HL
    Single needle flat seam
    2,500 rpm
    Max.1000×750 mm
    Standard facility
    Variable tension of multi segments
    Circular Cutting Knife
    Auxiliary presser foot + medium presser foot
    20mm
    Medium-heavy material double shuttle hook
  • SP-13075BS-M
    Single needle flat seam
    2,500 rpm
    Max.1300×750 mm
    Standard facility
    Variable tension of multi segments
    Circular Cutting Knife
    Auxiliary presser foot + medium presser foot
    20mm
    Heavy material standard hook
  • SP-13075BS-HL
    Single needle flat seam
    2,500 rpm
    Max.1300×750 mm
    Standard facility
    Variable tension of multi segments
    Circular Cutting Knife
    Auxiliary presser foot + medium presser foot
    20mm
    Heavy material double shuttle hook
  • SP-13075BS-ML
    Single needle flat seam
    2,500 rpm
    Max.1300×750 mm
    Standard facility
    Variable tension of multi segments
    Circular Cutting Knife
    Auxiliary presser foot + medium presser foot
    20mm
    Medium-heavy material double shuttle hook
