Product Introduction

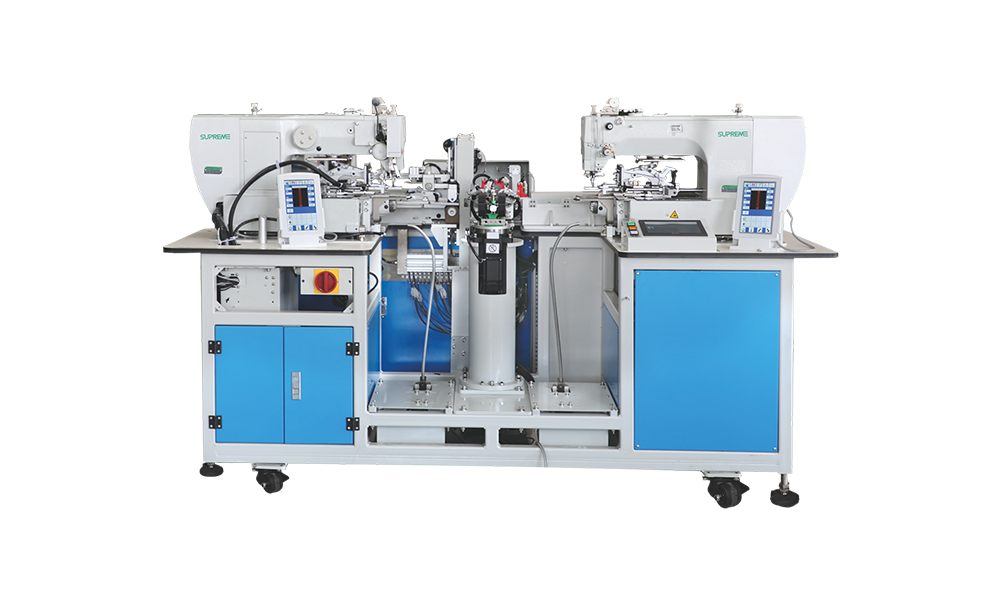

SP-F110

Double head elastic stitching machine
  • SP-F110-RQ
  • SP-F110-V/RQ
  • SP-F110-RQ-T
  • SP-F110-V-T

Advantages

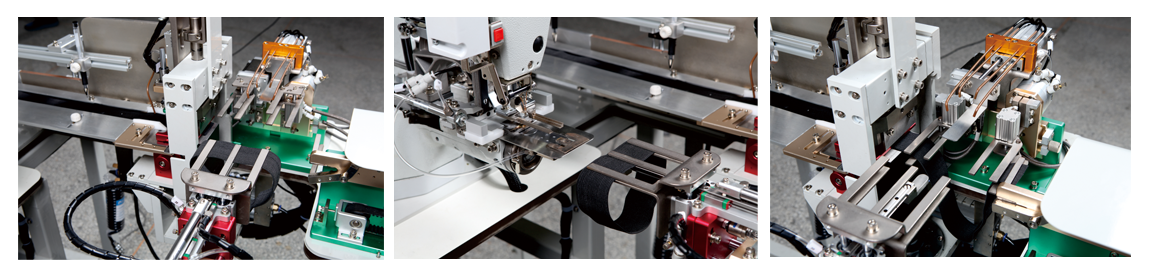

  • Ultrasonic cutter device is used to ensure that the rubber band incision is flat and without wire drawing. When encountering metal splicing heads in continuous cycle operation, there is no need to stop the machine for manual operation, and the equipment automatically senses and automatically cuts.
  • Automatically correct when the rubber band is misaligned on the interface to ensure error-free sewing at the edge interface.
  • Option: Ironing Device

Efficiency

  • Full automatic operation ：automatic material selection, automatic cutting, automatic splicing, automatic receiving, and automatic pointing device.
  • One person can operate multiple machines at the same time, and each machine can process 7000-8000 elastics/8h.

Application

It is suitable for the splicing process of multiple specifications of elastic bands, and the stitches are smooth and beautiful.

Technical Parameters

  • Model
    Model differentiation
    Highest sewing speed
    Sewing range
    Flnished elastic diameter scope
    Needle model
    Air pressure
    Weight
    Dimensions
    Voltage
  • SP-F110-RQ
    Regular
    2,800 rpm
    15×65mm
    120mm-999mm
    Dp17x11#
    0.5 Mpa 1.7 L/min
    600Kg
    1980x890x1200mm（L*W*H）
    Single phase220V
  • SP-F110-V/RQ
    Visual
    2,800 rpm
    15×65mm
    120mm-999mm
    Dp17x11#
    0.5 Mpa 1.7 L/min
    600Kg
    1980x890x1200mm（L*W*H）
    Single phase220V
  • SP-F110-RQ-T
    Regular hot iron
    2,800 rpm
    15×65mm
    120mm-999mm
    Dp17x11#
    0.5 Mpa 1.7 L/min
    600Kg
    1980x890x1200mm（L*W*H）
    Single phase220V
  • SP-F110-V-T
    Visual heating perm
    2,800 rpm
    15×65mm
    120mm-999mm
    Dp17x11#
    0.5 Mpa 1.7 L/min
    600Kg
    1980x890x1200mm（L*W*H）
    Single phase220V
