Product Introduction

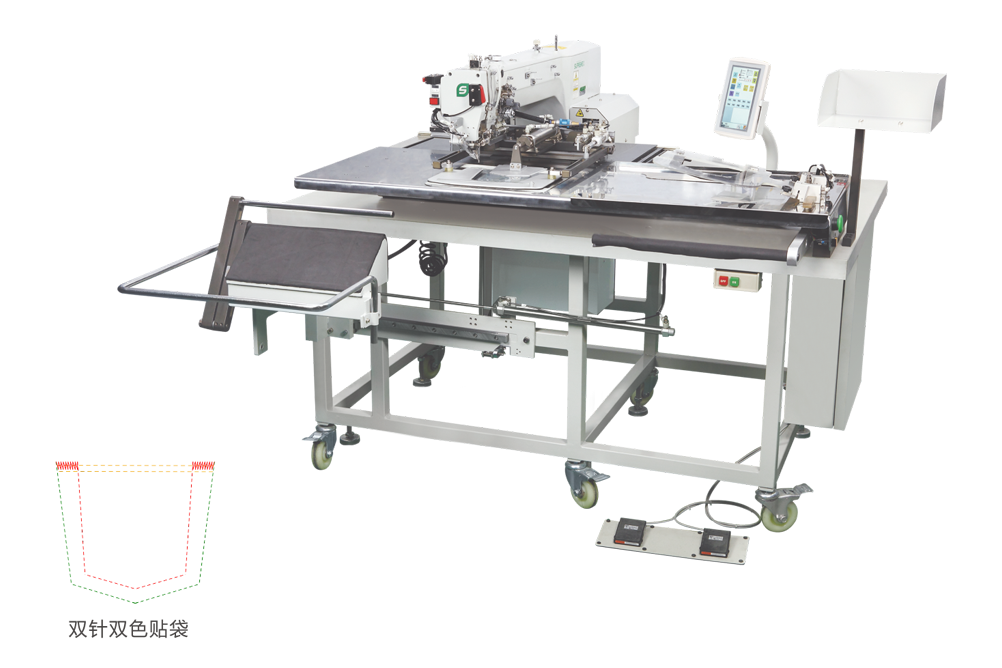

SP-3020TD-MSN/MDN

Semiautomatic Pocket Sewing Machine(Single/Double Needle)
  • SP-3020TD-MSN
  • SP-3020TD-MDN

Standard break sensor

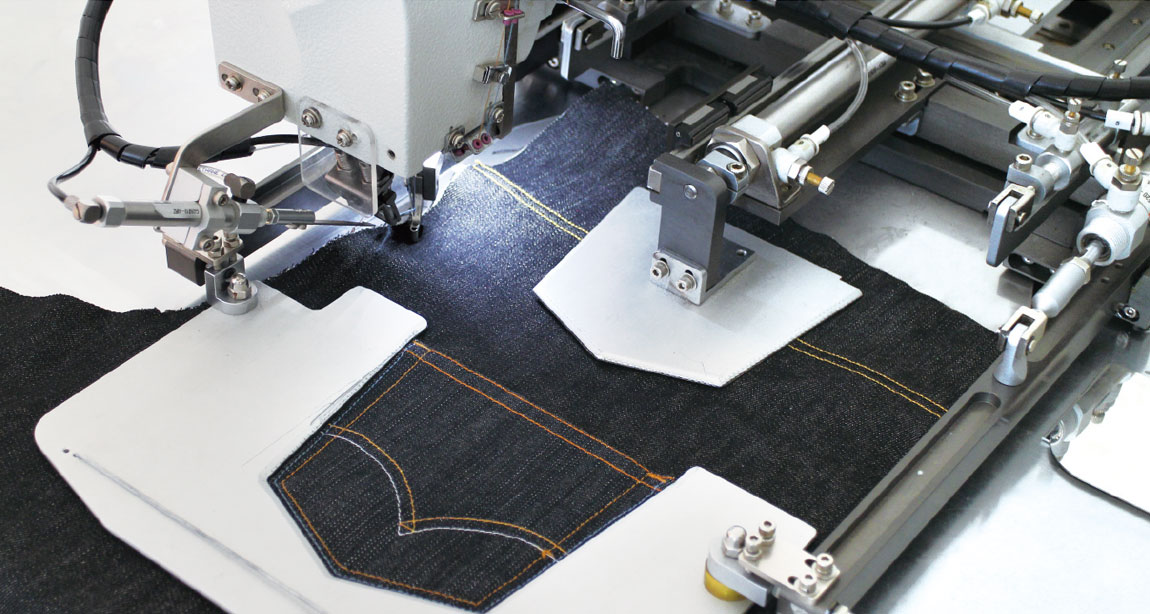

The machine can be used for sewing process of rear pockets in various fields, such as jeans , casual pants , uniforms , work clothes, etc. ; the machine holds functions of automatic feeding, automatic sewing , automatic rewinding. Its exclusive air suction device is capable of absorbing pants smoothly and stably. Its automatic line-breaking sensing device can automatically stop the machine and alarm after the line is broken.

Innovative design avoids errors

The Dual needles Semiautomatic Pocket Sewing Machine, which is uniquely designed, can sew by the use of two-color line, so as to avoid the positioning and sewing area errors generated by secondary stitch position of the sewing machine. At the same time, effect of sewing with two colors lines is beautiful and precise, which helps your factory to win more special orders.

Application of multi functional range

One machines has multiple functions. It can sew pockets with all kinds of shapes, such as round, square, curved, asymmetric pocket; at the same time, it can also be used to sew rear pocket, Leather Tags, bright lines of pocket cover and decorative pockets, etc.

Rapid and simple operating system

Touch screen to operate system, facilitates pattern editing and data management. It has good compatibility, which is compatible with 210D/210E and BA tricks. At the same time, it has functions of dual patterns making and modification.

Technical Parameters

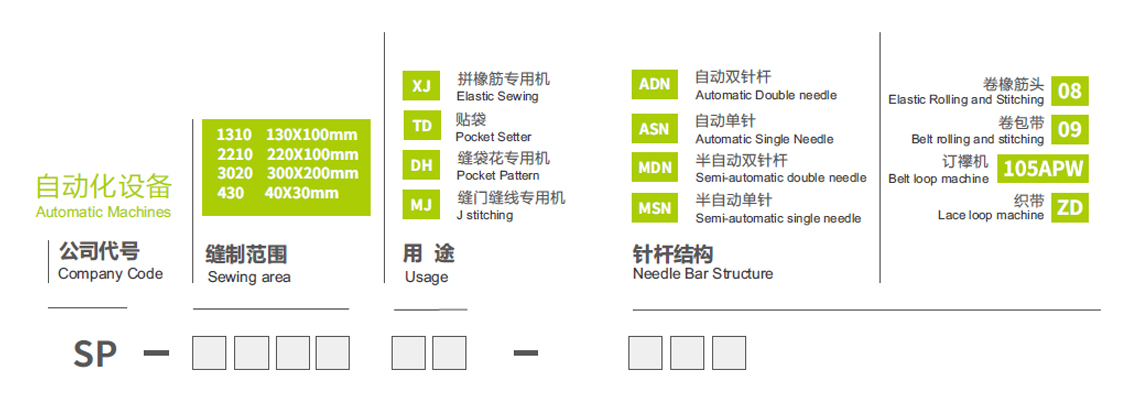

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot drive method
    Press foot height
    2- step presser foot
    Big foot presser method
    Big foot presser height
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Customer Program Amount
    Number of cycle programs
    Motor
    Weight
    Power
    Air pressure
  • SP-3020TD-MSN
    Sing-needle flat seam
    2,700 rpm
    Max.250×250mm
    Intermittent feeding(Pulse motor drive mode)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 500000stitches in inner storage
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    About 230kg
    Single phase 200~240V
    0.5Mpa、1.8 L/min
  • SP-3020TD-MDN
    Sing-needle flat seam
    2,700 rpm
    Max.250×250mm
    Intermittent feeding(Pulse motor drive mode)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 500000stitches in inner storage
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    About 230kg
    Single phase 200~240V
    0.5Mpa、1.8 L/min
