Product Introduction

SP-F136

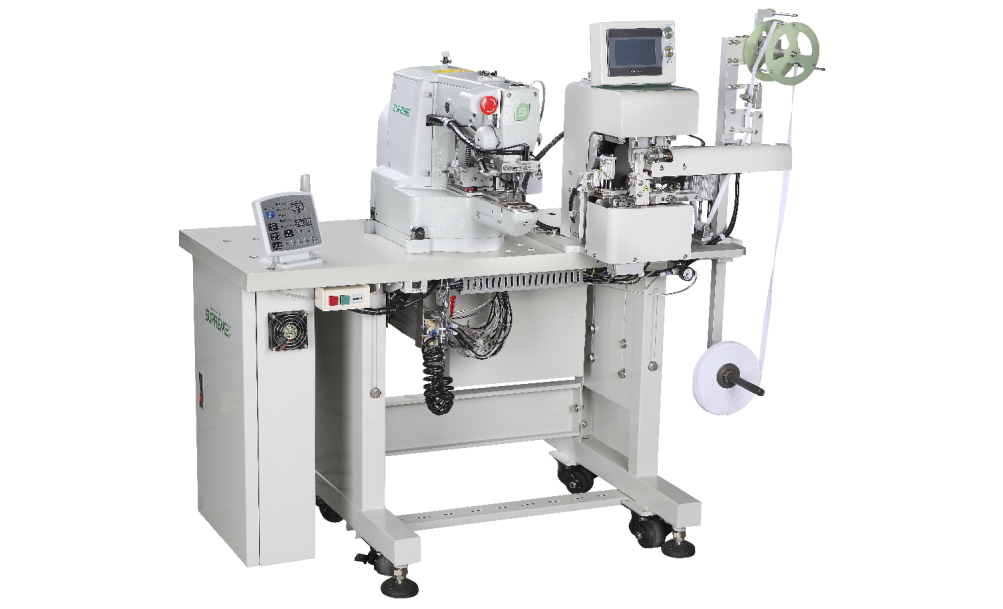

Semi-Auto Crotch Reinforecement Machine

  • SP-F316

This machine is mainly used in trousers crotch reinforcement and similar process. No need for experienced workers.

Product Features

  • Quick mold change
  • Tape size can be adjusted according to customer requirements
  • Cutting, folding and feeding all at once
  • Stitch :Single needle lockstitch sewing
  • Sewing speed 2700rpm
  • Using the material width 30-70mm

Advantages

  • Extremely simple operation mode, no special technical requirements for the operator
  • Precise folding method ensures the same length of each piece
  • Fold the tape neatly and securely

Technical Parameters

  • Model
    Stitch
    Sewing speed
    Using the material width
    Motor
    Power supply
    Air pressure
  • SP-F316
    Single needle lockstitch sewing
    2700rpm
    30-70mm
    AC servo motor 550W direct drive type
    Single phase
    0.5Mpa,1.8L/min
