Product Introduction

SP-460AS/860AS-HF/MF

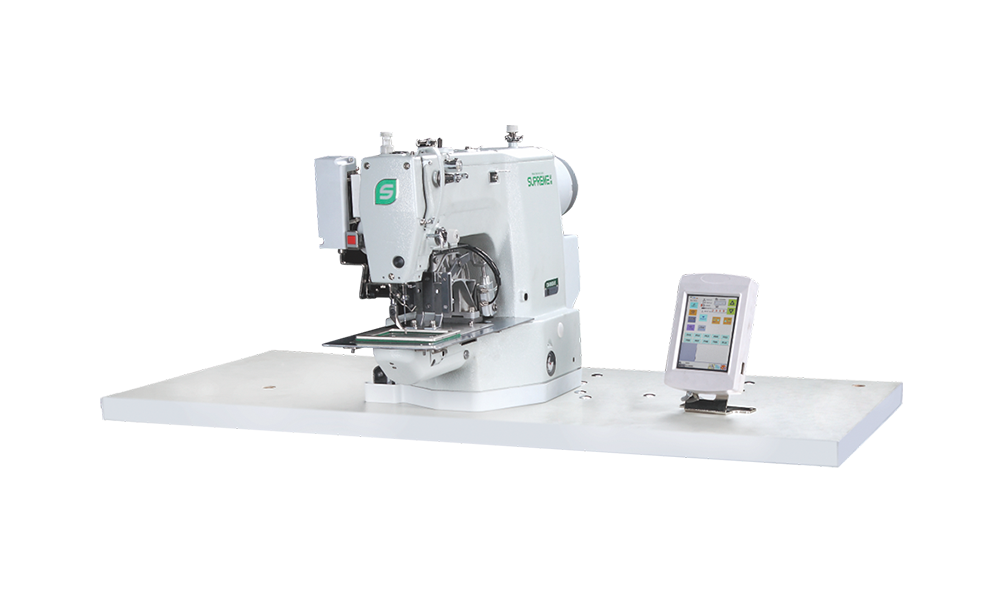

Electronic Pattern Sewing Machine

  • SP-860AS-HS/MS
  • SP-860AS-H/M

With sewing area 80mmX60mm, used wildly in garments, shoes, bags and sewing application.
And MF for medium-heavy material while HF for heavy material.

Characters

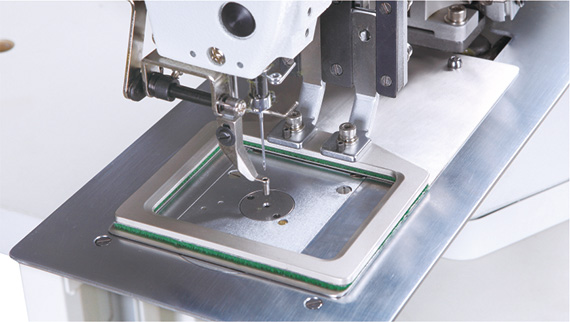

  • Improved thread catching device reduces thread cast-off at the start.
  • Shorter thread end after trimming efficiently reduces bird nest at start ,which improves sewing quality.
  • Oil-free style prevents the pollution

Characters

  • Easily operating system, visual main menu, program for directly editing touching screen, could be equipped with electronic catcher
  • Highest speed in the industry:Maximum speed 2700rpm,Quality sewing based on sewing pattern
  • Low power consumption:Computer direct drive method without power consuming during transmitting, equipped with small energy saving motor,Power consumption reduced by 35% compared with the traditional machines, lowest power consumption in compute r bartack machines. 。

Extend Function

  • SS:Solenoid-driven
  • AS:Pneumatically-driven

Technical Parameters

  • Model
    Line
    Maximum Speed
    Sewing area
    Feeding Method
    Pitch
    Maximum stitch amount
    Driven Method
    Presser foot stroke
    Hook
    Thread Wiper
    Cutting device
    External data storage media
    Number of cycle programs
    Number of stored data
    Motor
    Weight
    Power
    Air pressure
  • SP-860AS-HS/MS
    Single-needle flat seam
    2,700 rpm
    80×60mm
    Intermittent feeding (driven by pulse motor)
    0.1 - 12.7mm
    5000 needles/1 pattern
    Pulse motor drive
    Max.17mm
    2-time hook
    Standard facility
    Standard facility
    USB
    30 cycles(50programs for each)
    89 patterns; Maximum 512 patterns more ,estimated 500000 stitches
    AC servomotor 550W
    Head:about 64 kg Table&stand:about 30 kg Control Box:20kg (according to different export countries)
    Single phase 220V, 3-phase 380V
    0.5 Mpa 1.7 L/min
  • SP-860AS-H/M
    Single-needle flat seam
    2,700 rpm
    80×60mm
    Intermittent feeding (driven by pulse motor)
    0.1 - 12.7mm
    5000 needles/1 pattern
    Pneumatic
    Max.17mm
    2-time hook
    Standard facility
    Standard facility
    USB
    30 cycles(50programs for each)
    89 patterns; Maximum 512 patterns more ,estimated 500000 stitches
    AC servomotor 550W
    Head:about 64 kg Table&stand:about 30 kg Control Box:20kg (according to different export countries)
    Single phase 220V, 3-phase 380V
    0.5 Mpa 1.7 L/min
