Product Introduction

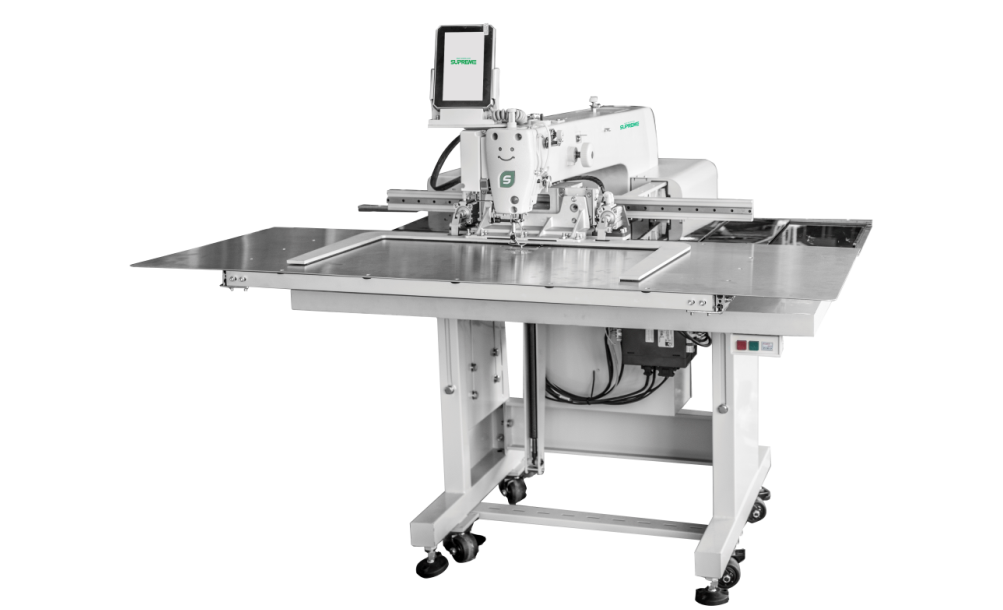

SP-4530DS/6030CS(new)

Electronic Pattern Sewing Machine

  • SP-4530DS-H
  • SP-4530DS-M
  • SP-4530DS-X
  • SP-6030CS-H
  • SP-6030CS-M
  • SP-6030CS-X

SP series electronic pattern sewer, with the industry\\\\\\\\\\\\\\\'s fastest speed, efficient and beautiful sewing effect,
wider sewing range, stronger applicability, using energy-saving technology, the machine is more energy saving and environmental protection.

Characters

  • Avoid bird-nest:Avoid bird-nest while machine trim and collect extra thread at start.
  • Sealed gear box:Sealed oil tank of gear reduces abrasion and improves duration of gear.
  • Appearance upgrade:Attracting appearance alleviates visual fatigue.
  • Automatic needle position detecting:Needle stops consistently at right position which helps the loading of material .

Characters

  • Digital electronic thread tension control.:Adjustable thread tension via digital touch panel beautifies stitching trace.
  • Independent trimming mechanism:Independent trimming mechanism controls trimming time efficiently.
  • Internet upgrade:Possible to upgrade remotely via internet.

Improve sewing quality

X-Y motor closed-loop control can accurately identify the position of cloth feeding, reducing the deviation during high-speed sewing and the sewing deviation of heavy fabrics.

Disconnection holdling function

With Variable tension of multi segments ,electric tension device leaves less margin and provides better stitching trace.

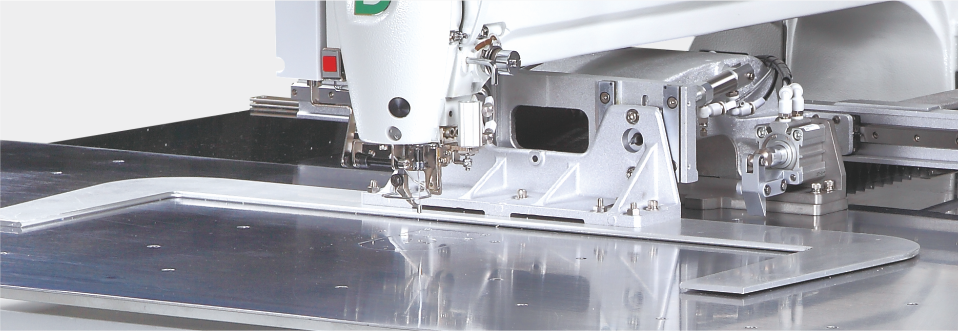

Standard foot presser equipment

Using larger area foot presser device as standard equipmentand more stable model plate of fixed pattern,it reduces shake during sewing to a which in return renders more precise and beautiful stitching lines.

Lower Power consumption, Higher Speed ,Higher Efficiency

Adopt computer direct drive small energy saving motor without transmission loss. Power consumption has been cut by 50% compared with traditional models, making it the lowest power consumption computer machine on the market.

Fast and convenient program editining

Using PD3000 programming software, it is easy to edit pattern, and AS is more compatible with DA/DE, PLK format pattern editing, which simplify the process of pattern editing. With large screen LCD interface and new touch screen control , you can complete the man-machine dialogue using finger. You can create and editing the data easily according to the icons and orders;

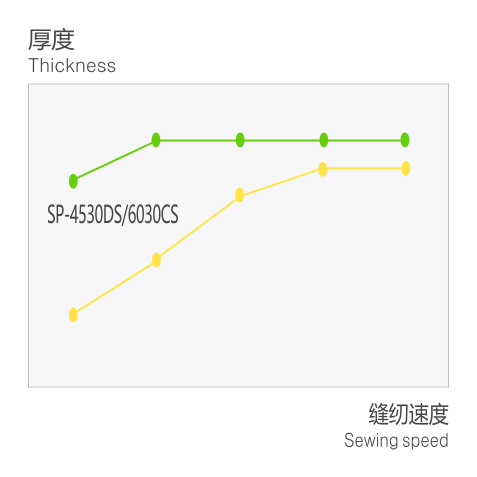

Strengthening machine needle penetration force

Powerful direct drive motor makes the machine needle penetration force more forcerul. The speed of start and stop is faster. The speed 2800rpm improves the efficiency to a further extent.

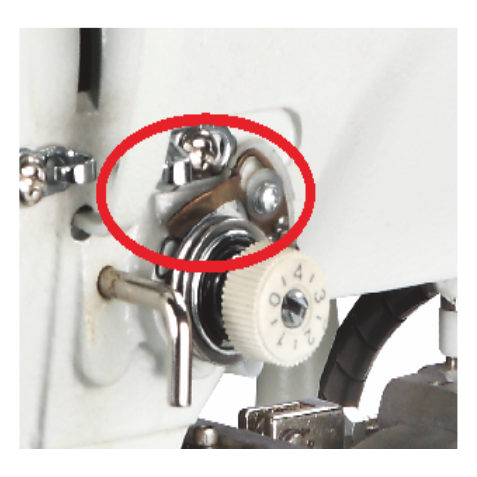

Standard broken-needle sensor

To be used for detection of thread broken .It automatically stops and informs the operator once it detects thread broken .

Optional:Automatic Bobbin changer

Can be used to detect broken thread .It automatically stops and informs the operator once it detected broken thread.

Optional:Industrial scanner

It can directly transfer decoded content to computer system by USB.It will be more convenient to match the correct pattern by scanner while sewing different patterns and materials.

Technical Parameters

  • Model
    Model distinguish
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding device
    Stitch length
    Max. needle number
    Work Clamp Height
    2-step presser foot
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Hook
    Thread Wiper
    Cutting device
    Data storage way
    Motor
    Mechanical dimensions
    Packing size
    Weight
    Power
    Air pressure
  • SP-4530DS-H
    -H Heavy Material
    Single-needle flat seam
    2800 rpm
    450×300 mm
    Intermittent feeding (Servomotor drive)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 30 mm
    Integral press foot
    22 mm
    0or2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB
    AC servomotor 550W
    1210×1420×1400
    1310×1455×1400
    300kg
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
  • SP-4530DS-M
    -M Medium Heavy Material
    Single-needle flat seam
    2800 rpm
    450×300 mm
    Intermittent feeding (Servomotor drive)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 30 mm
    Integral press foot
    22 mm
    0or2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB
    AC servomotor 550W
    1210×1420×1400
    1310×1455×1400
    300kg
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
  • SP-4530DS-X
    -X Super-heavy Material
    Single-needle flat seam
    2800 rpm
    450×300 mm
    Intermittent feeding (Servomotor drive)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 30 mm
    Integral press foot
    22 mm
    0or2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB
    AC servomotor 550W
    1210×1420×1400
    1310×1455×1400
    300kg
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
  • SP-6030CS-H
    -H Heavy Material
    Single-needle flat seam
    2800 rpm
    600×300 mm
    Intermittent feeding (Servomotor drive)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 30 mm
    Integral press foot
    22 mm
    0or2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB
    AC servomotor 550W
    1420×1380×1370
    1550×1500×1500
    320kg
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
  • SP-6030CS-M
    -M Medium Heavy Material
    Single-needle flat seam
    2800 rpm
    600×300 mm
    Intermittent feeding (Servomotor drive)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 30 mm
    Integral press foot
    22 mm
    0or2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB
    AC servomotor 550W
    1420×1380×1370
    1550×1500×1500
    320kg
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
  • SP-6030CS-X
    -X Super-heavy Material
    Single-needle flat seam
    2800 rpm
    600×300 mm
    Intermittent feeding (Servomotor drive)
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 30 mm
    Integral press foot
    22 mm
    0or2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB
    AC servomotor 550W
    1420×1380×1370
    1550×1500×1500
    320kg
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
