Product Introduction

SP-3015-01/A

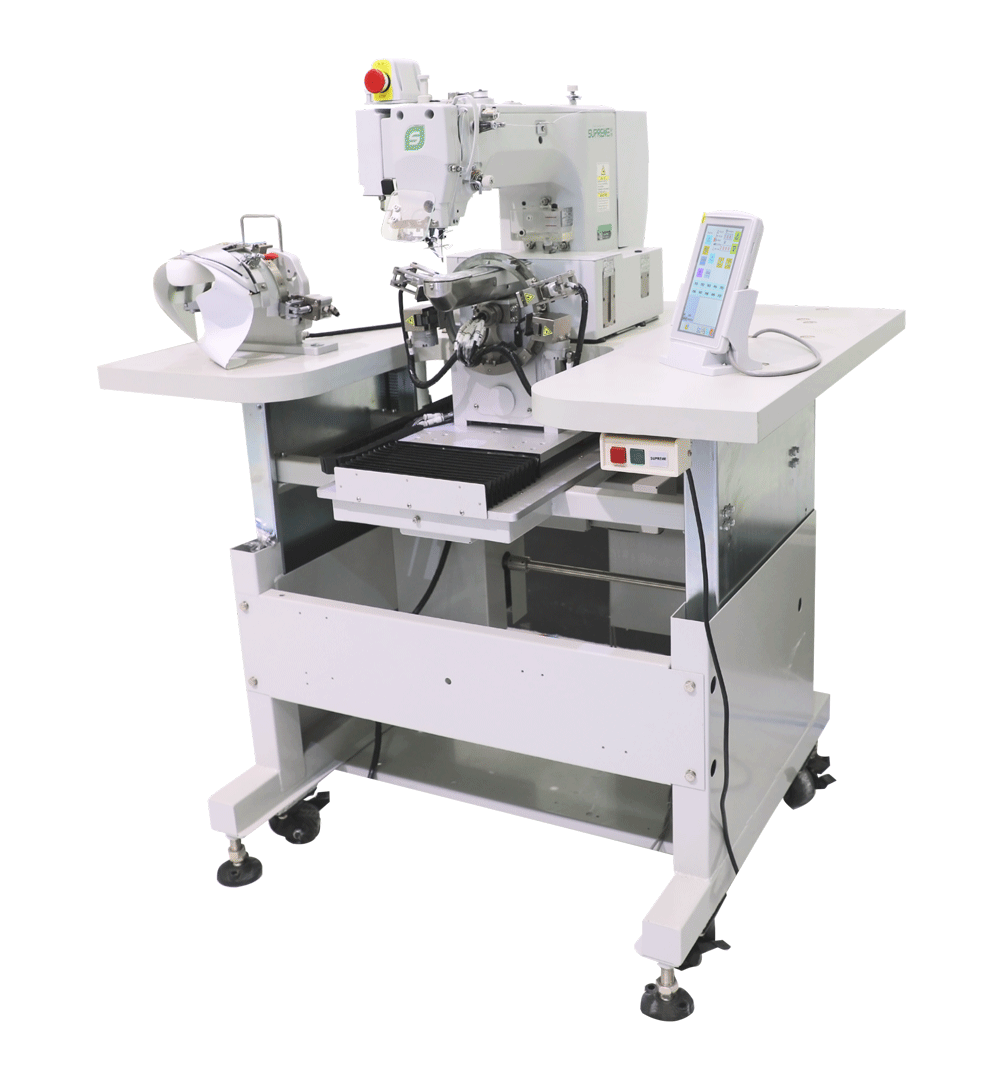

3D pattern sewing machine

Advantages

  • X向260°回转
  • 手摇式升降脚架
  • 上轴与下轴同步带联动，减小噪音
  • 采用模板装夹，使操作更简单
  • 电磁铁扫线，使运行更加稳定

Efficiency

  • 260° rotation in X direction
  • Hand-operated lifting tripod
  • The upper shaft and the lower shaft are synchronously linked to reduce noise
  • Use template clamping to make the operation easier
  • The electromagnet sweeps the line to make the operation more stable

Application

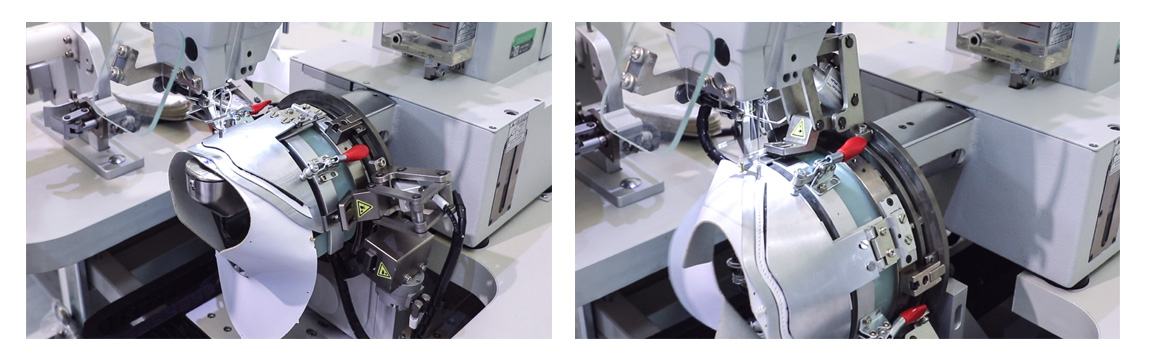

Suitable for sewing 3D curved edges of various fabrics such as clothing, shoes, bags, etc.

Technical Parameters

  • Model
    Holes/minute
    Sewing range
    Needle model
    Hook
    Feeding device
    Voltage
    Air pressure
    Weight
    Dimensions
    Rated power
  • SP-3015-01/A
    2000rpm
    Maximum 300×150 (3D sewing)
    DP17x19#
    Double Shuttle Hook
    Intermittent cloth feeding (driven by servo motor)
    220V
    0.5Mpa 、1.8 L/min
    250Kg
    1100×900×1200mm(L×W×H)
    1700W
