Product Introduction

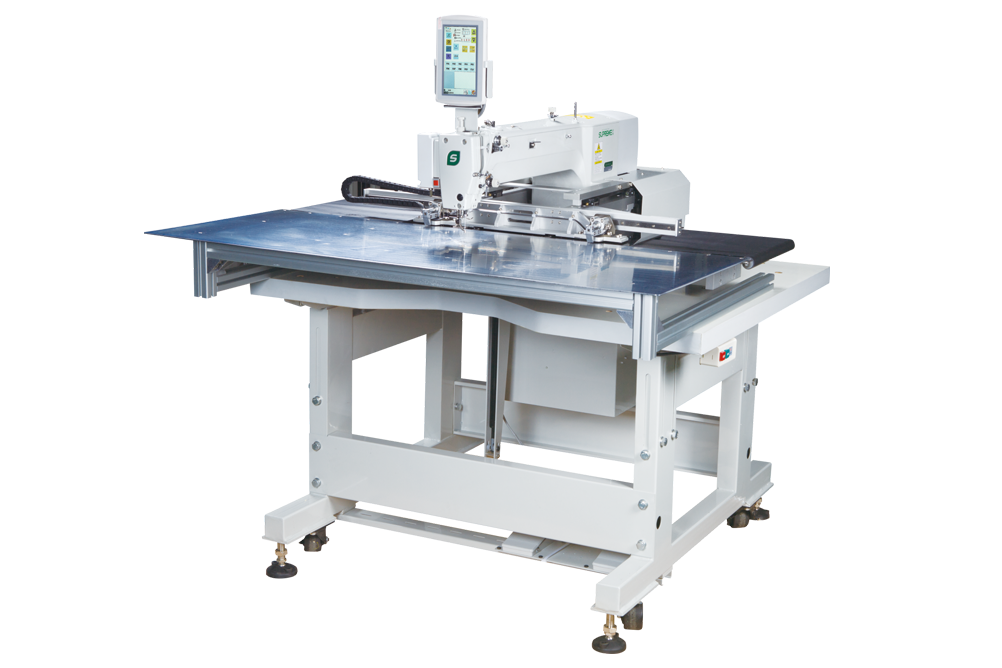

SP-6030AS

Electronic Pattern Sewing Machine

  • SP-6030AS-H/M/X

Mainly used in big materials like car seat ,air bag,,leather bag,clothes and shoe upper,it embraces stable

performance and beautiful lines.

Characters

  • Servo motor drive: Better stitch lines,lower noise and lower vibration generated by servo motor in X,Y direction.
  • Thread-broken detector: Used to detect broken-thread,which stops the machine as soon as it detects broken line.
  • Mainly used in big area materials like car seat ,air bag,leather bag,clothes and shoes upper, it has stable performance and beautiful lines.

Advantage in performance

Equipped with renewed servo motor system,the feeding of X,Y directions is powerful enough which enables more precise sewing pattern. Using latest control technology. it extends the sewing area to further extent. It can cut thick line sharply due to stable cutting device.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot driving method
    Press foot height
    2- step presser foot
    Big foot presser height
    Big foot presser method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Customer program amount
    Recyle programme No.
    Motor
    Power
    Air pressure
  • SP-6030AS-H/M/X
    Sing-needle flat seam
    2,700 rpm
    Max.600×300mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    single phase 200~240V
    0.5Mpa、1.8L/min
