Product Introduction

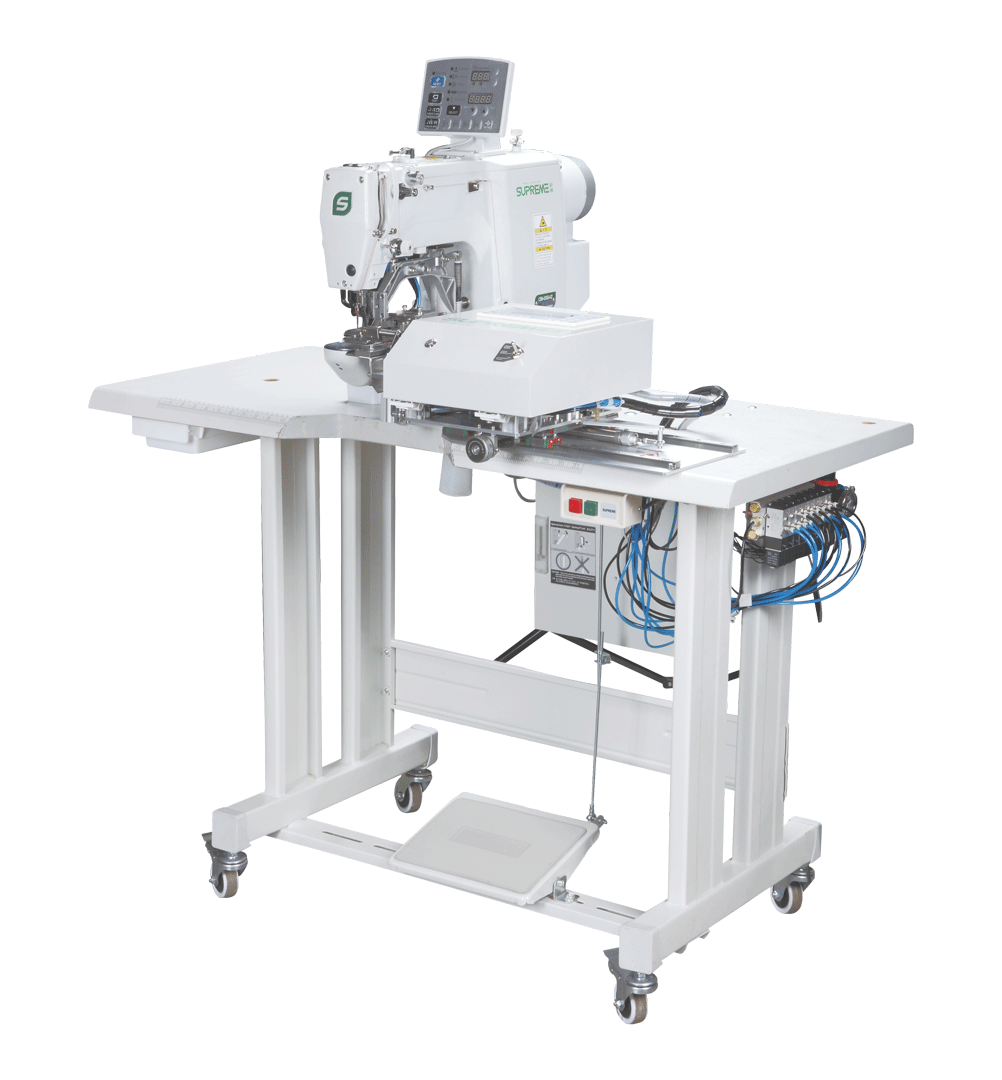

SP-430G-JDA/JDB

Automatic Coil Elastic Ribbon

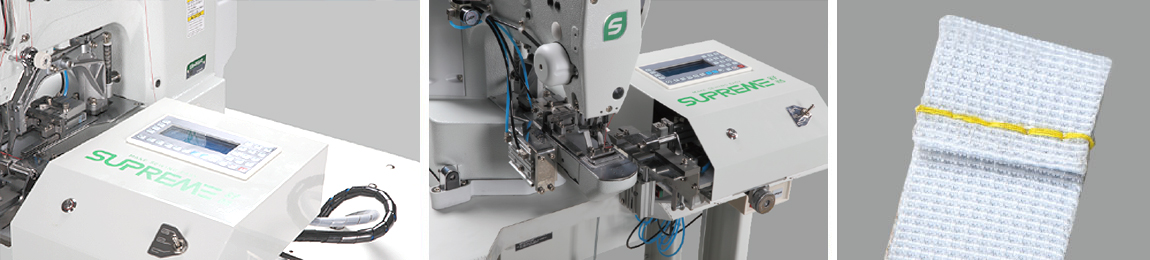

Rolling, feeding, stitching all at once. Automatic ring-shape belt sewing machine is mainly used to sew various ring-shaped bag belts.
With moving rolling and feeding device, the pattern could be programmed.

Characters

  • Rolling, feeding, stitching all at once. Automatic ring-shape belt sewing machine is mainly used to sew various ring-shaped bag belts.
  • With moving rolling and feeding device, the pattern could be programmed.
  • 430G-JDA sewing area 20-38mm rolling length 10-30mm
  • 430G-JDB sewing area 15-40mm, rolling length 10-60mm

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Presser foot lift mode
    Rising amount of intermittent foot presser
    Recyle programme No.
    Motor
    Power
    Air pressure
    Rolling length
  • SP-430G-JDA
    Sing-needle flat seam
    3200 rpm
    20×38mm
    Intermittent feeding(Pulse motor drive mode)
    0.05-12.7mm
    5000 needles/1 pattern
    Pneumatic
    Max. 17mm
    30 cycles(50 programs for each)
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase 200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    10×33mm
  • SP-430G-JDB
    Sing-needle flat seam
    3200 rpm
    15×40mm
    Intermittent feeding(Pulse motor drive mode)
    0.05-12.7mm
    5000 needles/1 pattern
    Pneumatic
    Max. 17mm
    30 cycles(50 programs for each)
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase 200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    15×60mm
