Product Introduction

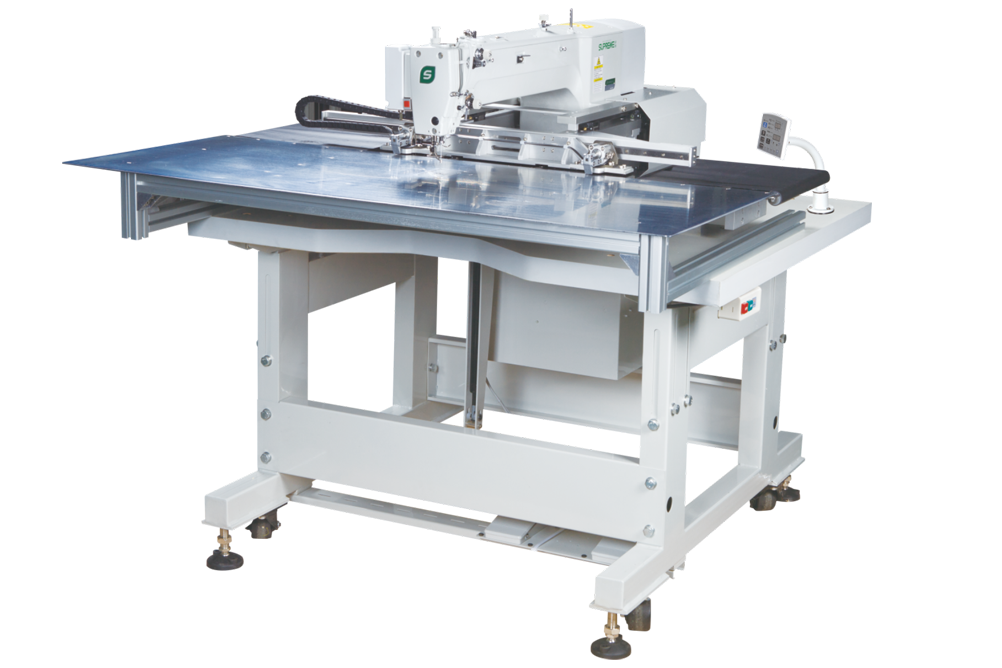

SP-6030/6040AP

Electronic Pattern Sewing Machine

  • SP-6030AP-H/M/X
  • SP-6040AP-H/M/X

Characters

  • Using Thread breakage detector ,the sewing stops automatically once it detects broken thread.
  • Mainly used for big area materials like air bag and bags ,it is suitable for multi small parts stitching.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot drive method
    Press foot height
    2- step presser foot
    Big foot presser height
    Big foot presser method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Customer program amount
    Recyle programme No.
    Motor
    Weight
    Power
    Air pressure
  • SP-6030AP-H/M/X
    Sing-needle flat seam
    2,700 rpm
    Max. 600×300mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Head:About 150kg
    Single phase200~240V
    0.5Mpa、1.8L/min
  • SP-6040AP-H/M/X
    Sing-needle flat seam
    2,700 rpm
    Max. 600×300mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Head:About 150kg
    Single phase200~240V
    0.5Mpa、1.8L/min

Download

Is this the machine you are looking for ?
