Product Introduction

SP-2210DH-ASN/ADN

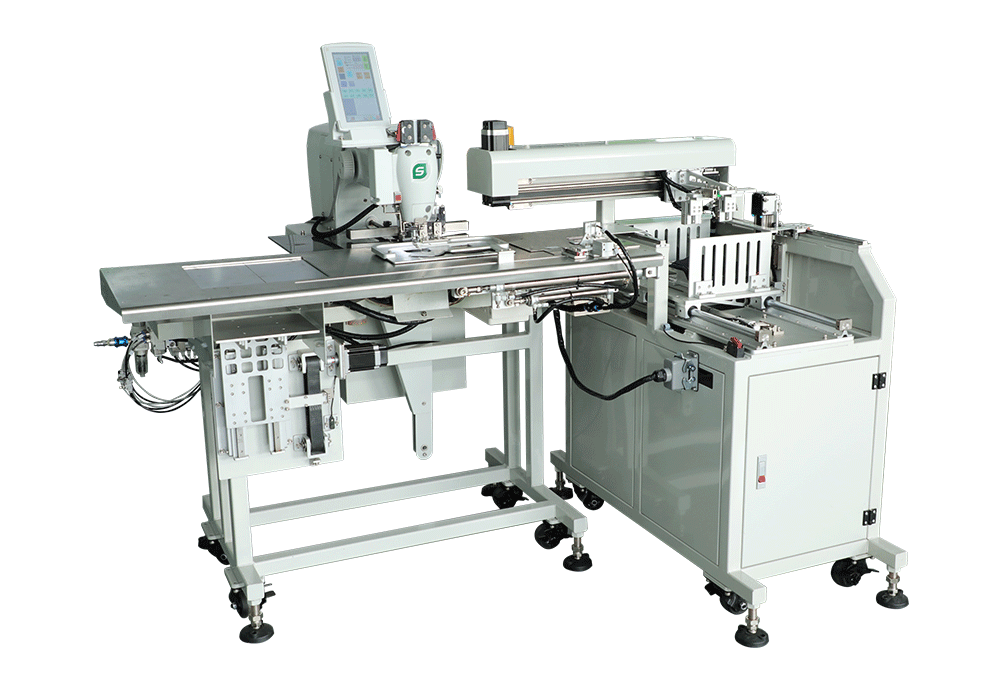

Automatic Pocket Pattern Sewing Machine(Single/Double Needle)

  • SP-2210DH-ASN
  • SP-2210DH-ADN
  • Video1
  • Video2

The machine is mainly used for pocket decorative stitch sewing for work wear, jeans and casual wear. The electronic tricks

equipped in the machine head can sew all kinds of tackings and decorative stitches in addition to common plat sewing

stitches. The range of sewing is 220mm×100mm, which can be used to sew all kinds of pocket decorative stitches.

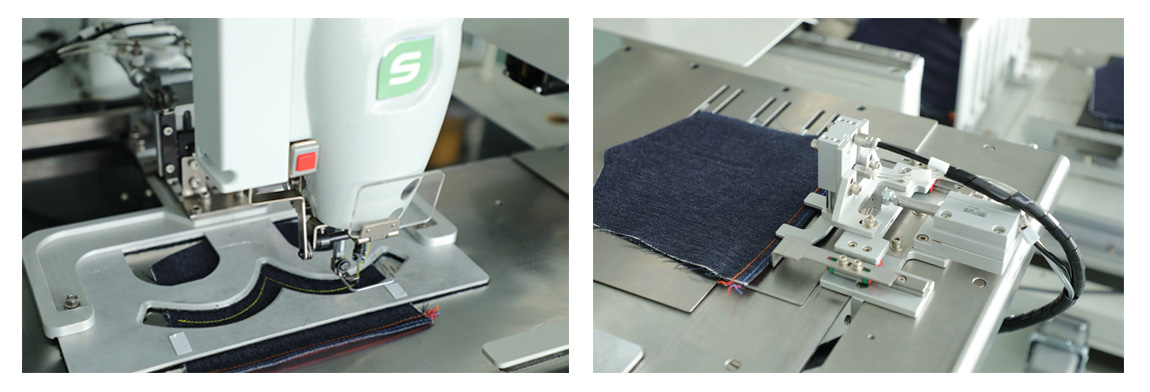

Innovative design avoids errors

The double needle pocket pattern machine ,creative design of Supreme ,avoids the mistakes of sewing area and stithcing lines which was accured while repositioning after alternating machine.With beautiful and precise sewing effect of double needle ,it attracks more orders for the factory.

Fully-automatic,high efficiency and stable

The fully-automatic machine integrated feeding ,sewing and collecting into one process ,which enables one work to operate 3 machines at one time .It is stable and efficient.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Presser foot drive method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Customer program amount
    Recyle programme No.
    Motor
    Power
    Air pressure
  • SP-2210DH-ASN
    Sing-needle flat seam
    2,700 rpm
    Max.220×100 mm
    Pneumatic
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    50
    9
    AC servomotor 550W
    Single phase 200~240V
    0.5Mpa、1.8L/min
  • SP-2210DH-ADN
    Sing-needle flat seam
    2,700 rpm
    Max.220×100 mm
    Pneumatic
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    50
    9
    AC servomotor 550W
    Single phase 200~240V
    0.5Mpa、1.8L/min

Download
