Product Introduction

SP-F109/F1091

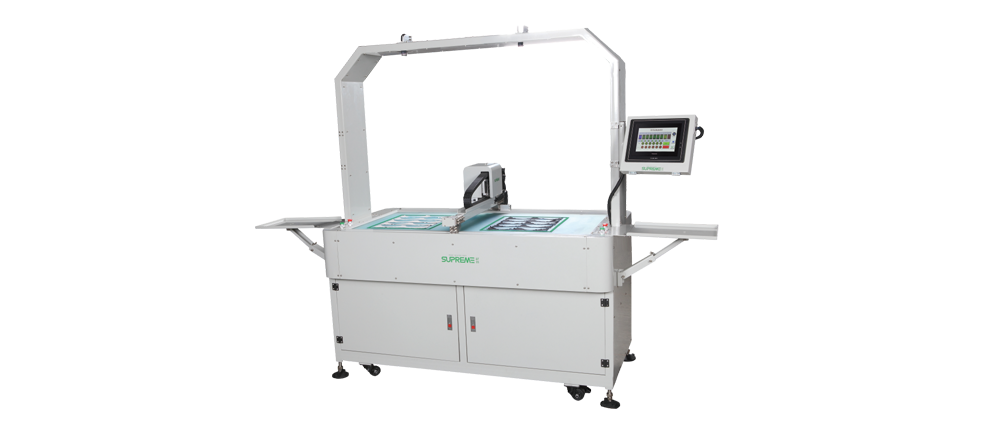

Automatic Ultrasonic Welding Machine

  • SP-F109
  • SP-F1091

With visual system, ultrasonic welding tech, accurate locating function.
Used wildly in under wear, shoes, no-woven material which are controlled by computer.

Product Characteristics

  • With visual position-hunting system. Part pieces could be put randomly.
  • With visible human-machine interface and convenient operating system,it can program the patterns directly .
  • The operation combined data management with visual touch screen.

Technical Parameters

  • Model
    Power
    Weight
    Volum
    adhesion range
  • SP-F109
    2kw
    400kg
    170×820×190mm
    450×350mm
  • SP-F1091
    2kw
    400kg
    170×820×190mm
    900×700mm

Download

Is this the machine you are looking for ?
