Product Introduction

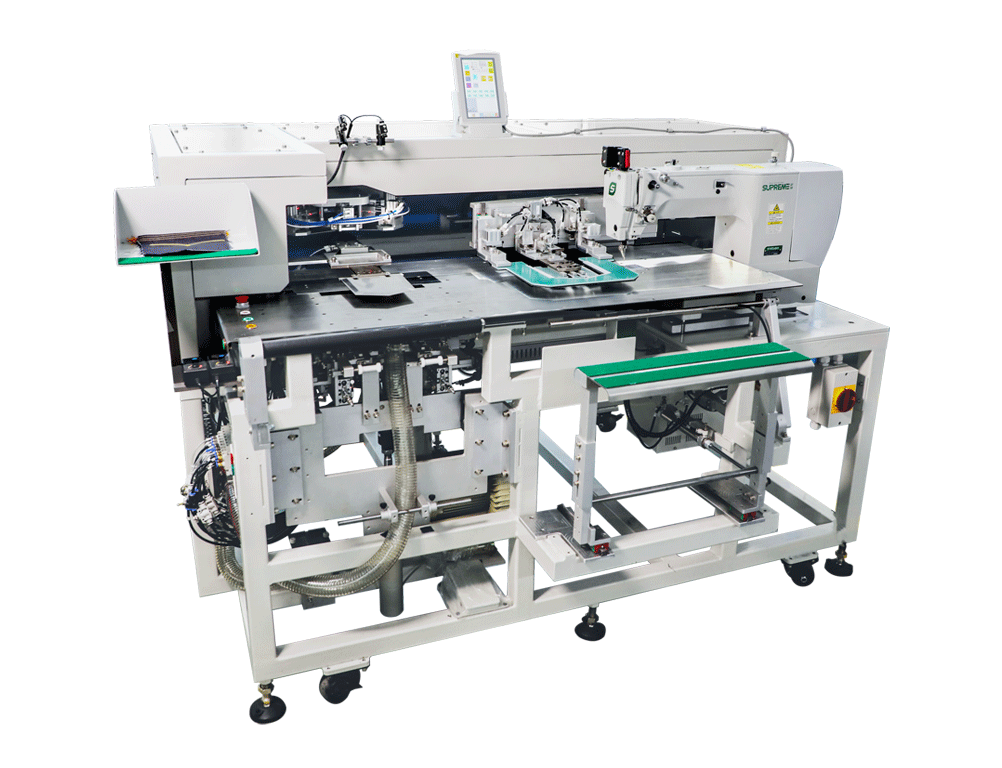

SP-1310BTD-ASN

Full-Automatic Pocket Setter


Applied in every type of pocket ,the machine performs better on
jeans,T-shirt ,trouser,military trouser and uniform.

Specification

  • Machine Head:Direct drive Juki lockstich
  • Speed:3000sti/min
  • Size:130mm x 100mm
  • Needle:DPS17 16*-23* DBX5
  • Driven Method:Encoder Pulse Motor,X-Y Foot Presser Drive
  • Power:Single Phase 220V
  • Air pressure、 air consumption:0.5Mpa(5kg/cm2)、220 dm3/min

Advantages

  • Supreme automatic pocket setter improves efficiency and quality by automizing the complicated process of pocket .It doesn't require skill to fold the pocket ,position the piece ,stitch the pocket ,bartack and stack.
  • With 11s, you can finish pocket setting ,folding and cyclying on 1 machine .
  • Lock stitch machine head realizes high standard stitching allowance required by factories.

Download
