Product Introduction

SP-L3020/L4530-5CK

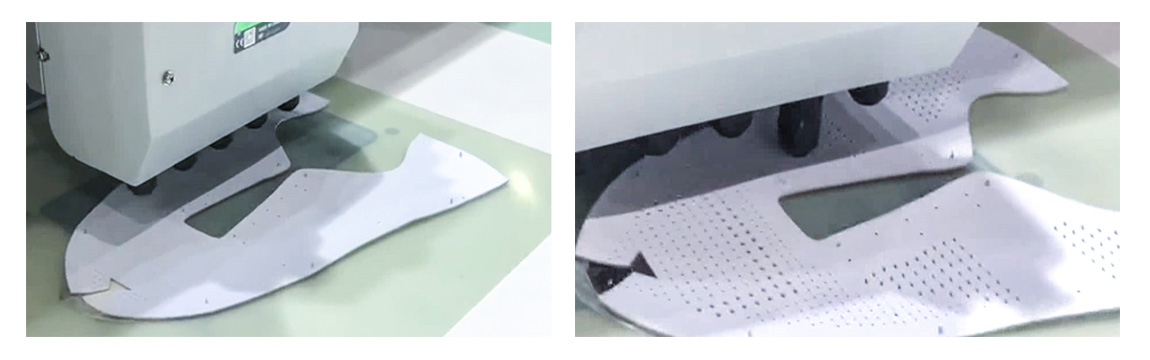

Punching machine (5 position)

  • SP-L3020-5CK
  • SP-L4530-5CK

Sewing of super-large objects including various down garments, bags,leatherware, airbags, car seat cushions, and home textiles;
combined sewing of small objects such as shoes and clothes.

Automatic production

  • Mechanic punch ,no stink and scorch
  • Self developed numerical control system, convenient upgrade
  • Autocad drawing
  • High productivity and efficiency 1000-1200 holes /min

Automatic production

  • 2 kw /h ,low power consumption
  • Waste material collection
  • Accuracy of servo system 0.015 noise lower than 70db.
  • Patent product

Technical Parameters

  • Model
    Speed(holes/minute)
    punchers
    area(mm)
    Diameter(mm)
    Thickness(mm)
    Accuracy(mm)
    Tolerance(mm)
    Power
    Frequency(Hz)
    Air Pressure(bar)
    NW(kg)
    GW(kg)
    Machine Dimension(L*W*H)
    Package dimension(L*W*H)
  • SP-L3020-5CK
    1000~1200 holes/minute
    5
    300×200 (380*200single hole)
    0.8~10mm
    1~6mm
    ±0.15mm
    ±0.02mm
    220V/2.5KW
    50/60Hz
    0.4~0.6mpa
    900Kg
    1100kg
    1100×915×1390mm
    1250×1100×1550mm
  • SP-L4530-5CK
    1000~1200 holes/minute
    5
    450×300 (530*300 single hole)
    0.8~10mm
    1~6mm
    ±0.15mm
    ±0.02mm
    220V/2.5KW
    50/60Hz
    0.4~0.6mpa
    1000kg
    1200kg
    1350*1100*1390mm
    1500*1250*1550mm
