Product Introduction

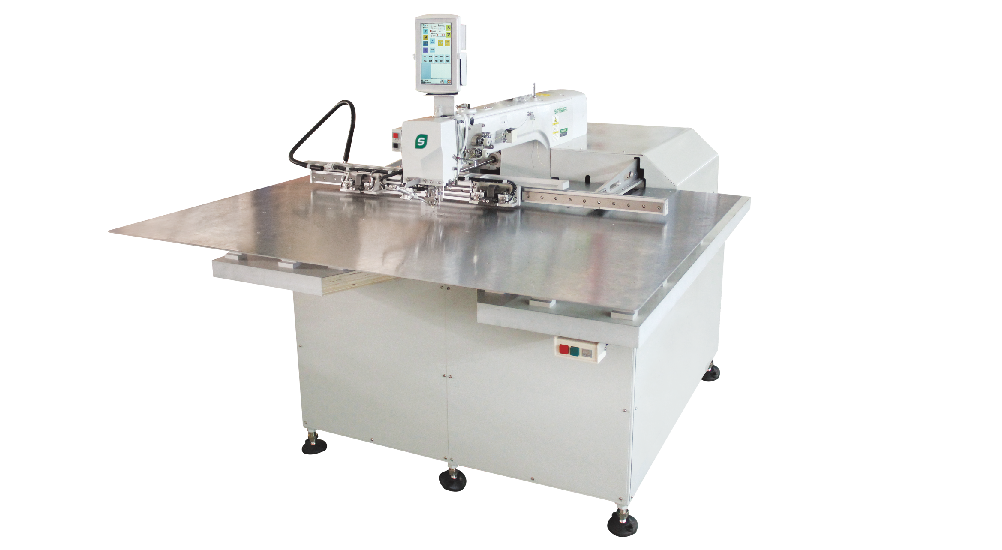

SP-6040AS-H/DN

Double Needle Pattern Tacker

  • SP-6040AS-H/DN
  • SP-6040AS-X/DN

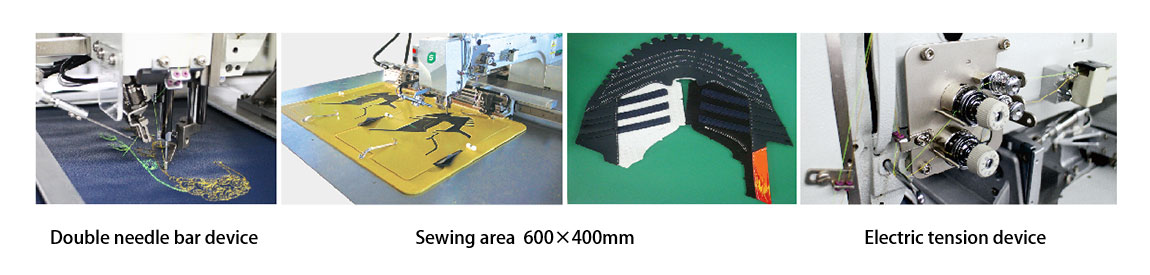

Adopting leading technology of supreme ,double needle bar transmitting mechanism,it is able to sew with double color while combined

with self-developed software system.It is not only accurate and stable ,but also has advantage in making complicated patterns.

Mainly used in big area sewing including car seats,bags,clothes and shoes upperwith sewing area is 600×400mm.

Double Color Stitching Sample

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Presser foot drive method
    Press foot height
    Motor
    Power
    Air pressure
  • SP-6040AS-H/DN
    Sing-needle flat seam
    2,700 rpm
    600×400mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    Pneumatic
    Max. 30mm
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
  • SP-6040AS-X/DN
    Sing-needle flat seam
    2,700 rpm
    600×400mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    Pneumatic
    Max. 30mm
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
