Product Introduction

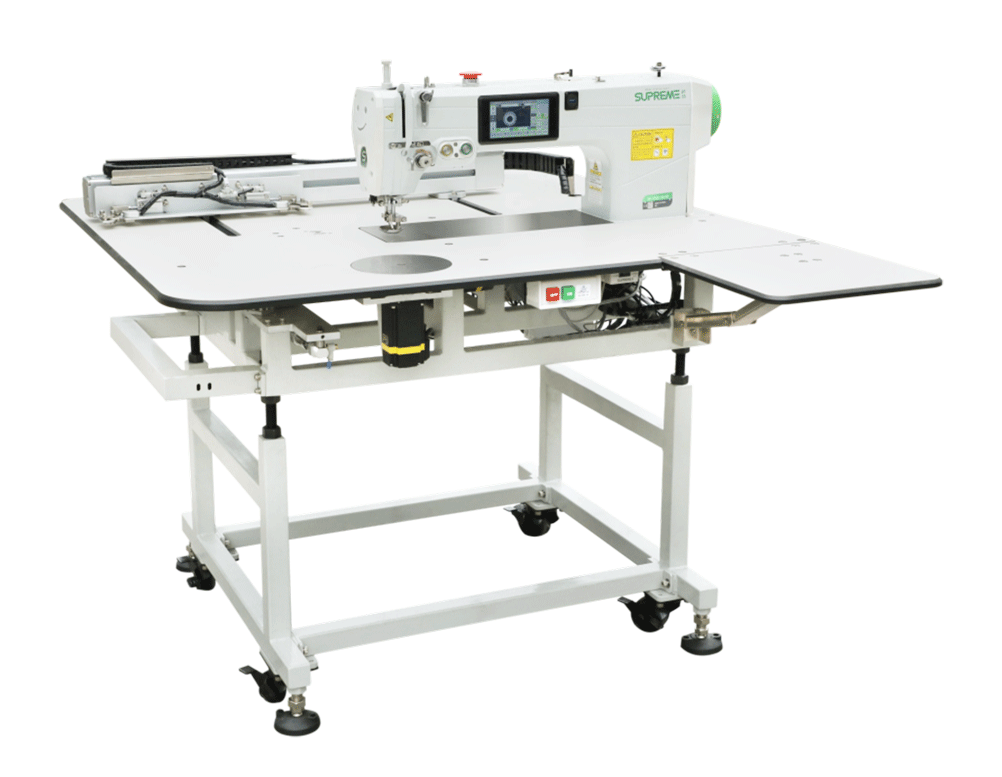

SP-S201L-M

Template Machine

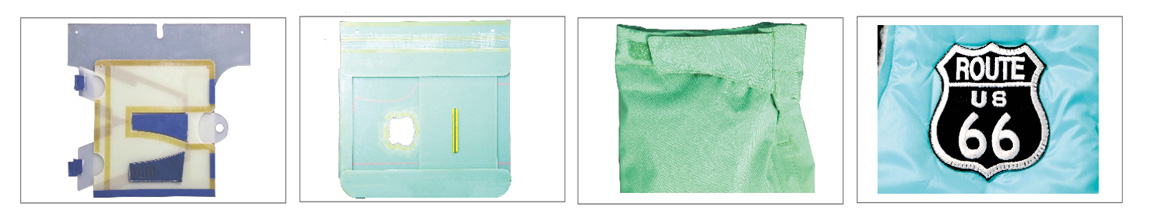

The machine ,based on intelligent template machine ,has small size ,fast speed and was applied mainly in apparel production .

Advantages

  • Intelligent stitching system with close circuit monitors real time stitching situation and adjusts sewing system interactively
  • Rfid identification system responses fastly,accurately and sensitively
  • Self-developed Gravity oil-supply system assures oil supply strength and assures stable oil-supply

Advantages

  • Using larger-range needle bar mechanism,height of needle 23mm,applied widely in templates and cloth with various thickness
  • Adopting intelligent mechanic presser foot ,it has flexibility of intelligent control system and stability of mechanic structure
  • Using screw-rod transmission system ,together with close-circuit motor,the machine reaches accuracy of 0.1mm

Technical Parameters

  • Model
    Scope of sewing
    Hook
    Stitch distance
    Line
    Maximum sewing speed
    Wiper device
    Intermediate pressure foot
    Needle
    Needle height
    Specification
    Weight
    Motor
    Power
    Air pressure
  • SP-M5040-H/M
    500×400mm
    Double hook
    0.05-12.7mm
    Sing-needle flat seam
    3000rpm
    Standard equipment
    Max. 7mm
    DPx17 7#-12# factory configuration9#
    23mm
    table extended 1400×1200mm
    260kg
    AC servomotor 550W
    Single phase200~240V
    0.5Mpa、1.8L/min
  • SP-M6040-H/M
    600×400mm
    Double hook
    0.05-12.7mm
    Sing-needle flat seam
    3000rpm
    Standard equipment
    Max. 7mm
    DPx17 7#-12# factory configuration9#
    23mm
    table folded 1780×1200mm;table extended 2230×2000mm
    275kg
    AC servomotor 550W
    Single phase200~240V
    0.5Mpa、1.8L/min
  • SP-M8040-H/M
    800×400mm
    Double hook
    0.05-12.7mm
    Sing-needle flat seam
    3000rpm
    Standard equipment
    Max. 7mm
    DPx17 7#-12# factory configuration9# 23mm
    23mm
    table folded 1780×1200mm;table extended 2230×2000mm
    290kg
    AC servomotor 550W
    Single phase200~240V
    0.5Mpa、1.8L/min
  • SP-M10080-H/M
    1000×800mm
    Double hook
    0.05-12.7mm
    Sing-needle flat seam
    3000rpm
    Standard equipment
    Max. 7mm
    DPx17 7#-12# factory configuration9#
    23mm
    table folded 1780×1200mm;table extended 2230×2000mm
    580kg
    AC servomotor 550W
    Single phase200~240V
    0.5Mpa、1.8L/min
  • SP-M12080-H/M
    1200×800mm
    Double hook
    0.05-12.7mm
    Sing-needle flat seam
    3000rpm
    Standard equipment
    Max. 7mm
    DPx17 7#-12# factory configuration9#
    23mm
    table folded 1780×1200mm;table extended 2230×2000mm
    600kg
    AC servomotor 550W
    Single phase200~240V
    0.5Mpa、1.8L/min
  • SP-M13090-H/M
    1300×900mm
    Double hook
    0.05-12.7mm
    Sing-needle flat seam
    3000rpm
    Standard equipment
    Max. 7mm
    DPx17 7#-12# factory configuration9#
    23mm
    table folded 1780×1200mm;table extended 2230×2000mm
    620kg
    AC servomotor 550W
    Single phase200~240V
    0.5Mpa、1.8L/min
