Product Introduction

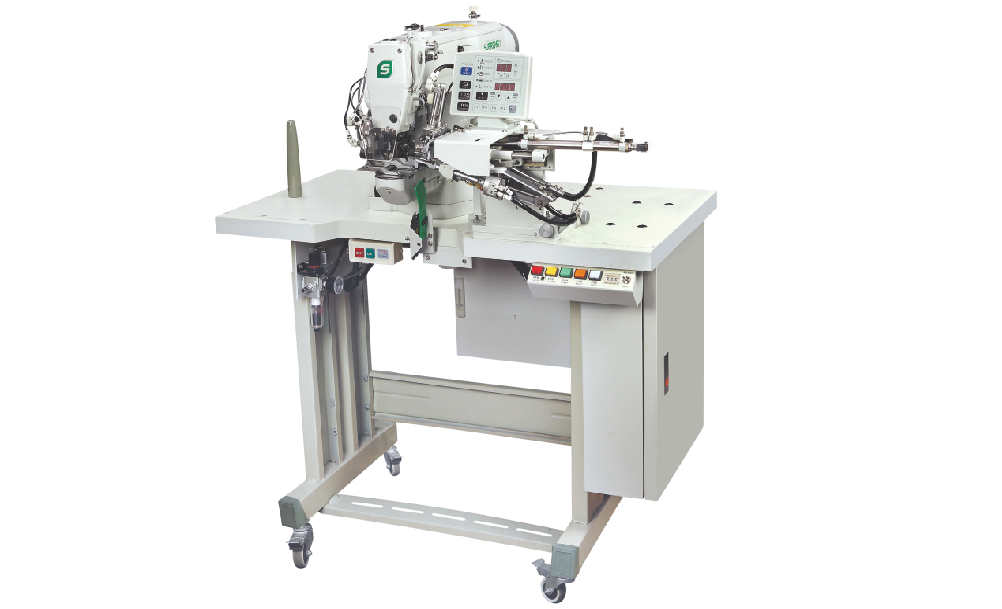

SP-430G-105APW

Automatic Loop Attaching Machine


As the machine is installed with high-speed lockstitch sewing head, it is suitable for all kinds of belt loops.

The collocated airflow magnet valve and oil-free cylinder could prevent noise and oil contamination. Automatic

device carries the belt loop under the needle, which protect the hand from hurt ,so you can operate safely.

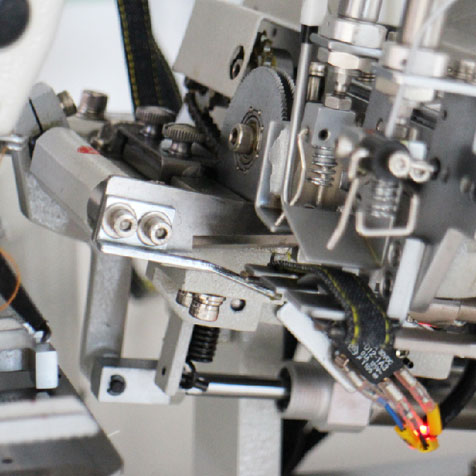

Auto-fold

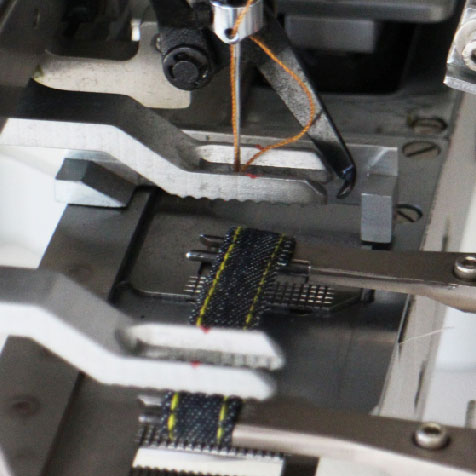

Auto-feeding

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Press foot height
    Shuttle
    Thread Wiper
    Cutting device
    Data storage method
    External data storage media
    Recyle programme No.
    Number of stored data
    Motor
    Weight
    Power
  • SP-430G-105APW
    Sing-needle flat seam
    2,700 rpm
    Noraml length:42-80mm Width:10-20mm
    Intermittent feeding(Pulse motor drive mode)
    0.05-12.7mm
    5000 needles/1 pattern
    Max. 20mm
    Shuttle
    Standard facility
    Standard facility
    Flash memory(with CF card,it can increase any sewing pattern as will)
    CF card
    30 cycles(50 programs for each)
    It can add 512 kinds of sewing dara at the most,total gauge is within 500,000 needles
    AC servomotor 550W
    About 120kg
    Single phase200~240V
