Product Introduction

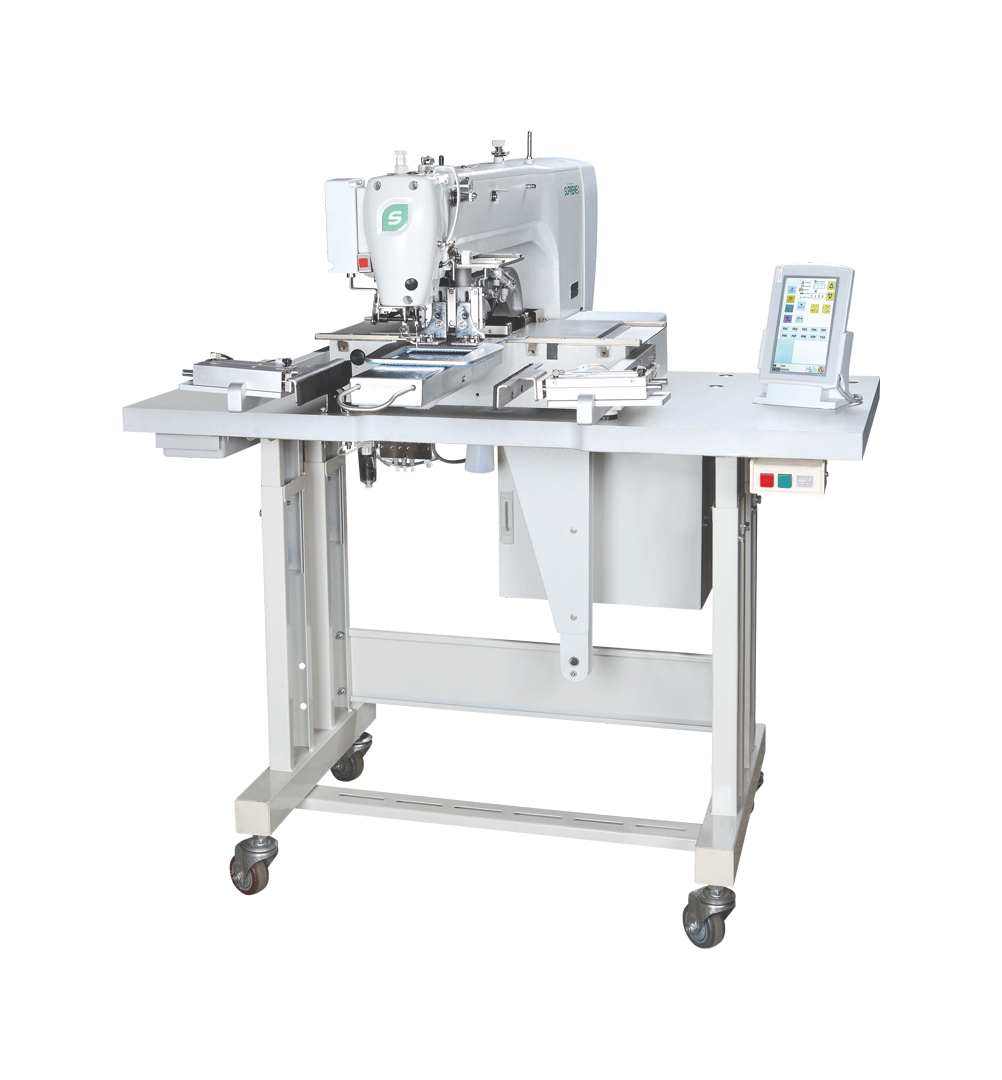

SP-2210BS/3020BS-XZ

Small Mouth Pattern Sewing Machine

  • SP-2210BS-XZ
  • SP-3020BS-XZ
  • Video1
  • Video2

The small mouth pattern machine is used to sew special tube materials such as boots, bags, suitcases.

Advantages

  • High quality sewing controlled by computer program.
  • Automatic clamping improves efficiency and avoids shifting.
  • Easy to program and edit via programmable touch screen.
  • Equipped with three working clamps of different area (80mm,100mm,150mm)
  • Sewing area 220mmX120mm

Cases

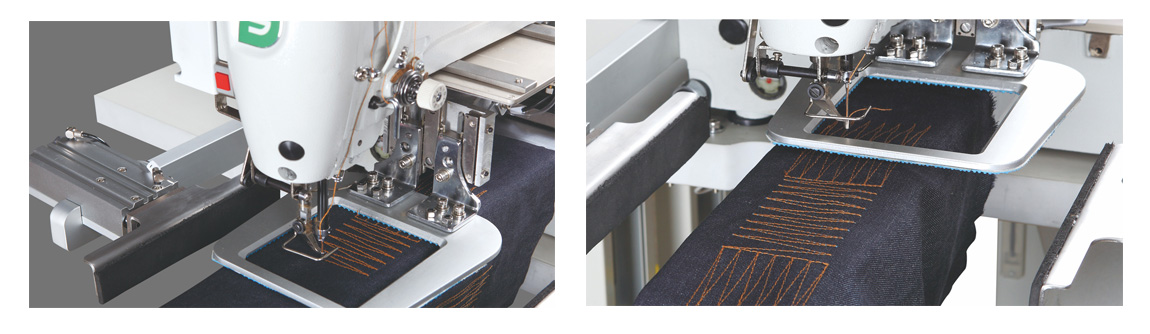

Automatic clamping/Feeding

Technical Parameters

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding device
    Stitch Length
    Maximum stitch amount
    Presser foot drive method
    Press foot height
    2- step presser foot
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Hook
    Thread Wiper
    Cutting device
    Tension device
    Data storage method
    Motor
    Weight
    Power
    Air pressure
  • SP-2210BS-XZ
    Sing-needle flat seam
    2,700 rpm
    Max.220×100 mm
    Intermittent feeding(Pulse motor drive mode)
    0.05 - 12.7mm
    20,000 needles/1 pattern
    Pneumatic
    Max. 30mm
    Divided presser foot
    22 mm
    0 or 2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    Elctric tension device
    USB or Flash memory (You can sew pattern with CF card)
    AC servomotor 550W
    Head:about 108 kg Operating panel:about 0.6 kg control box:14.2 - 16.2 kg (according to different export countries)
    Single phase 220V Three-phase 380V
    0.5 Mpa 1.8 L/min
  • SP-3020BS-XZ
    Sing-needle flat seam
    2,700 rpm
    Max.300×200 mm
    Intermittent feeding(Pulse motor drive mode)
    0.05 - 12.7mm
    20,000 needles/1 pattern
    Pneumatic
    Max. 30mm
    Divided presser foot
    22 mm
    0 or 2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    Elctric tension device
    USB or Flash memory (You can sew pattern with CF card)
    AC servomotor 550W
    Head:about 108 kg Operating panel:about 0.6 kg control box:14.2 - 16.2 kg (according to different export countries)
    Single phase 220V Three-phase 380V
    0.5 Mpa 1.8 L/min
