Product Introduction

SP-K1-01

3 Layers Mask cutting machine


Automatic feeding, folding, press to shape, build-in nosepin, cutting, full-automatic operation. Efficiency over 100pcs/min

Performance advantage

  • Servo control system improves efficiency and decrease defect
  • Feeding by roll improves accuracy of position, minimizes width of material and saves cost
  • Speed is adjustable by alternative-frequency
  • Automatic counting, tolerance +/- 1mm, uniform size, controllable length

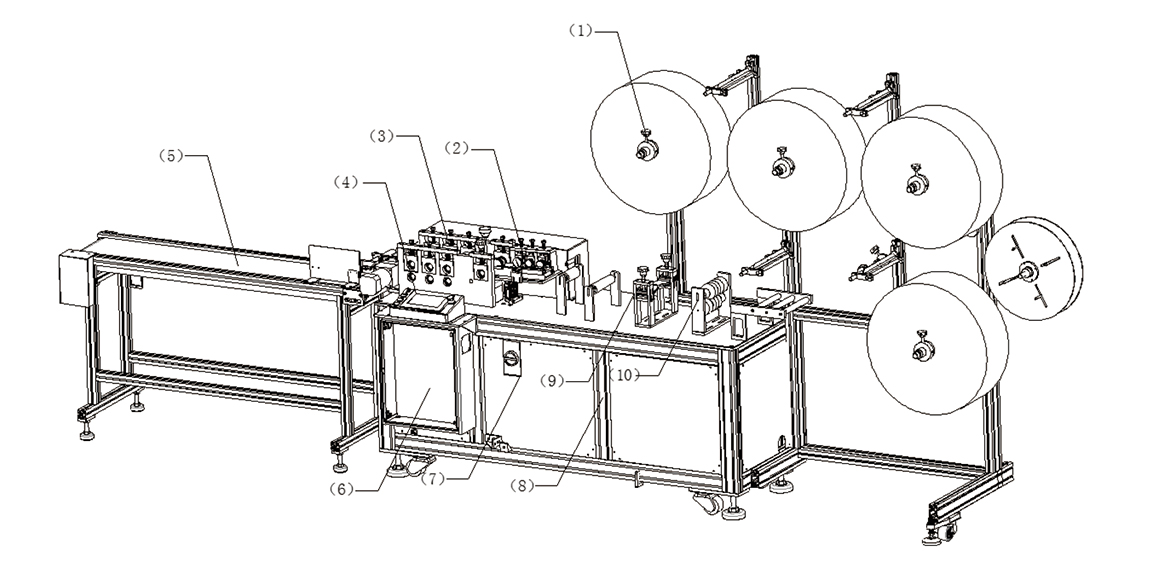

Structure

  • (1)Material roll
  • (2) Nosepin roll
  • (3)Cutting mechanism
  • (4)Screen mechanism
  • (5)Collection mechanism
  • (6)Electrical box
  • (7)Power
  • (8)Machine frame
  • (9)Folding plate
  • (11)Folding wheel

Technical Parameters

  • Model
    Model
    Power
    设备尺寸

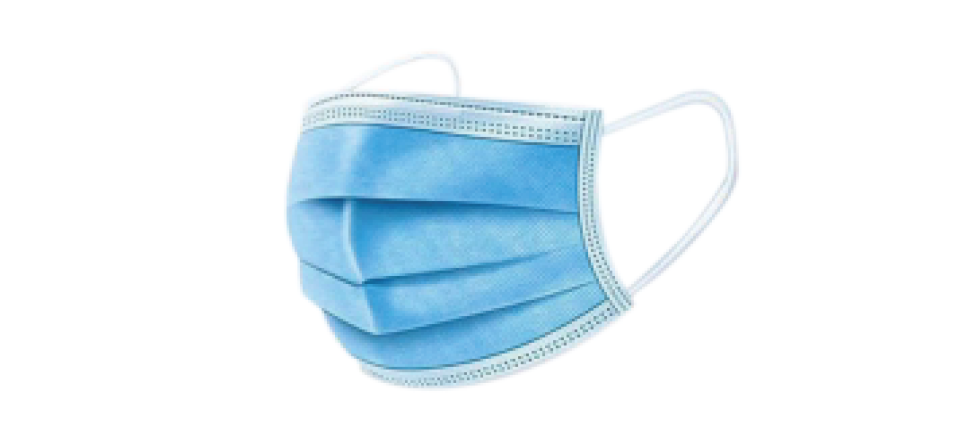

    Product specification
    Ultrasonic
    Power
    Air pressure
  • SP-K1-01
    SP-K1-01
    2500w
    5000*710*2000mm
    175*95mm
    20KHZ
    Single Phase
    0.5Mpa
