Product Introduction

SP-430BP/540BP

Electronic Bartack Machine

  • SP-430BP-01
  • SP-430BP-02
  • SP-430BP-07
  • SP-540BP-HS
  • SP-540BP-MS

Applicable in sewing of small size pattern, such as various garment for men and women,
denim, knit, intimates, children shoes ,bag .

Performance Advantage

  • Improved thread catching device can reduce thread falling off from needle even without slowing down the sewing speed at begining
  • Shortening the remained thread after trimming can efficiently reduce the bird nest appearing at begining of the sewing ,which improves sewing quality
  • Oil-free needle bar prevents pollution of material

Performance Advantage

  • Higher speed:Maximum speed 3200rpm,Quality sewing based on sewing pattern
  • Lower power consumption:Adoption of no transmission lost computer direct drive manner, equipped with small energy saving motor,Power consumption reduced by 35% compared with the traditional machines.

Foot clamp drive mode

  • S:Pressure foot solenoid-driven

Foot clamp drive mode

  • Pressure foot Pneumatically-driven
  • SMC cylinder

Optional

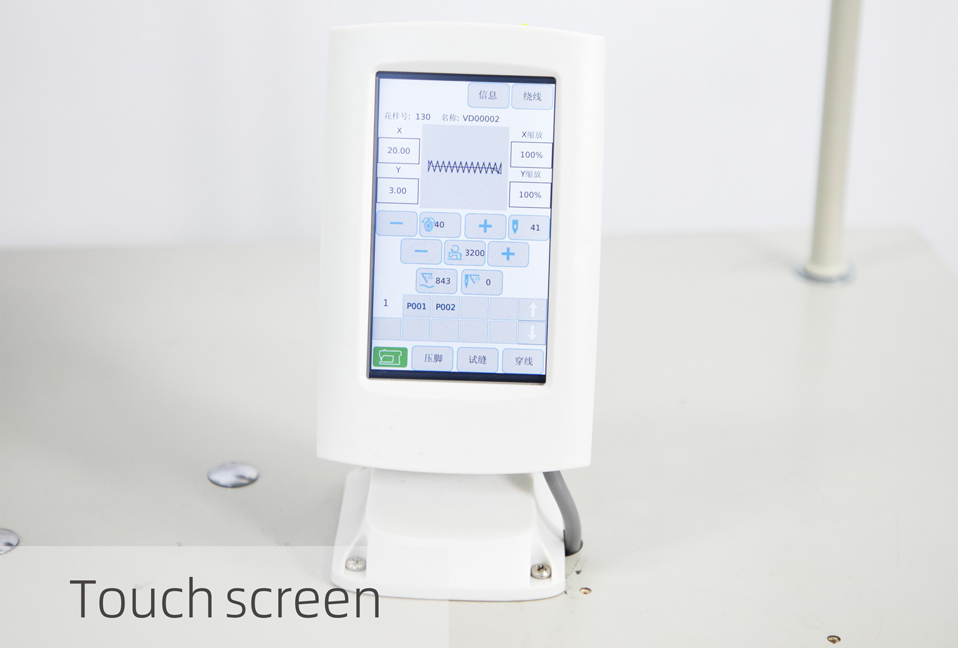

Touch screen and user-fridndlly interface.

Optional

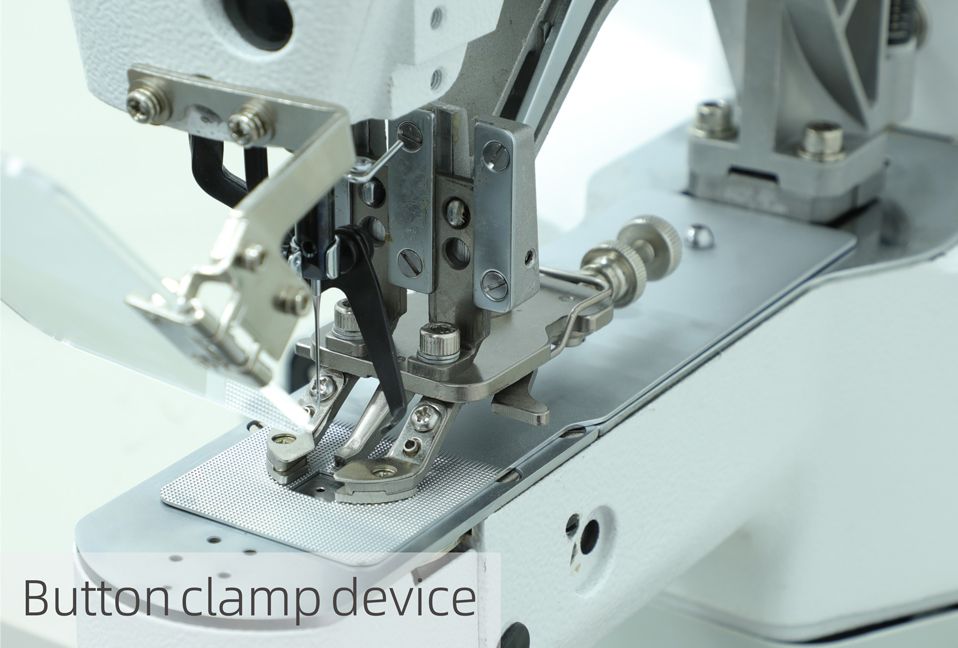

【Button clamp device】Button clamp device can be used on supreme bartack machine easy to install and replace to achive multi-purpose for barcack and button stitching.

Technical Parameters

  • Model
    Model distinguish
    Application
    Line
    Maximum Speed
    Sewing area
    Feeding Method
    Pitch
    Maximum stitch amount
    Driven Method
    Presser foot stroke
    Hook
    Thread Wiper
    Cutting device
    External data storage media
    Number of cycle programs
    Number of stored data
    Motor
    Machine size
    Packing size
    Weight
    Power
    Air pressure
  • SP-430BP-01
    -02 Medium Material
    Electronic Pattern Sewing Machine
    Single-needle flat seam
    3,200 rpm
    40×30mm
    Intermittent feeding (driven by pulse motor)
    0.1 - 12.7mm
    5000 needles/1 pattern
    Pulse motor drive
    Max 17mm
    Semi-Rotary standard shuttle hook
    Standard facility
    Standard facility
    USB
    30 cycles(50programs for each)
    89 patterns; Maximum 512 patterns more ,estimated 500000 stitches
    AC servomotor 550W
    600×260×360
    840×440×540
    60kg
    Single phase 220V
    0.5 Mpa 1.7 L/min
  • SP-430BP-02
    -02 Heavy Material
    Electronic Pattern Sewing Machine
    Single-needle flat seam
    3,200 rpm
    40×30mm
    Intermittent feeding (driven by pulse motor)
    0.1 - 12.7mm
    5000 needles/1 pattern
    Pulse motor drive
    Max 17mm
    Semi-Rotary standard shuttle hook
    Standard facility
    标准装备
    USB
    30 cycles(50programs for each)
    89 patterns; Maximum 512 patterns more ,estimated 500000 stitches
    AC servomotor 550W
    600×260×360
    840×440×540
    60kg
    Single phase 220V
    0.5 Mpa 1.7 L/min
  • SP-430BP-07
    -07 Needle stitching
    Electronic Pattern Sewing Machine
    Single-needle flat seam
    3,200 rpm
    40×30mm
    Intermittent feeding (driven by pulse motor)
    0.1 - 12.7mm
    5000 needles/1 pattern
    Pulse motor drive
    Max 17mm
    Semi-Rotary standard shuttle hook
    Standard facility
    Standard facility
    USB
    30 cycles(50programs for each)
    89 patterns; Maximum 512 patterns more ,estimated 500000 stitches
    AC servomotor 550W
    600×260×360
    840×440×540
    60kg
    Single phase 220V
    0.5 Mpa 1.7 L/min
  • SP-540BP-HS
    -HS Heavy Material electric
    Electronic Pattern Sewing Machine
    Single-needle flat seam
    3,200 rpm
    50×40mm
    Intermittent feeding (driven by pulse motor)
    0.1 - 12.7mm
    5000 needles/1 pattern
    Pneumatic
    Max 17mm
    Semi-Rotary standard shuttle hook
    Standard facility
    Standard facility
    USB
    30 cycles(50programs for each)
    89 patterns; Maximum 512 patterns more ,estimated 500000 stitches
    AC servomotor 550W
    600×260×360
    840×440×540
    60kg
    Single phase 220V
    0.5 Mpa 1.7 L/min
  • SP-540BP-MS
    -MS Medium Material electric
    Electronic Pattern Sewing Machine
    Single-needle flat seam
    3,200 rpm
    50×40mm
    Intermittent feeding (driven by pulse motor)
    0.1 - 12.7mm
    5000 needles/1 pattern
    Pneumatic
    Max 17mm
    Semi-Rotary standard shuttle hook
    Standard facility
    Standard facility
    USB
    30 cycles(50programs for each)
    89 patterns; Maximum 512 patterns more ,estimated 500000 stitches
    AC servomotor 550W
    600×260×360
    840×440×540
    60kg
    Single phase 220V
    0.5 Mpa 1.7 L/min
