Product Introduction

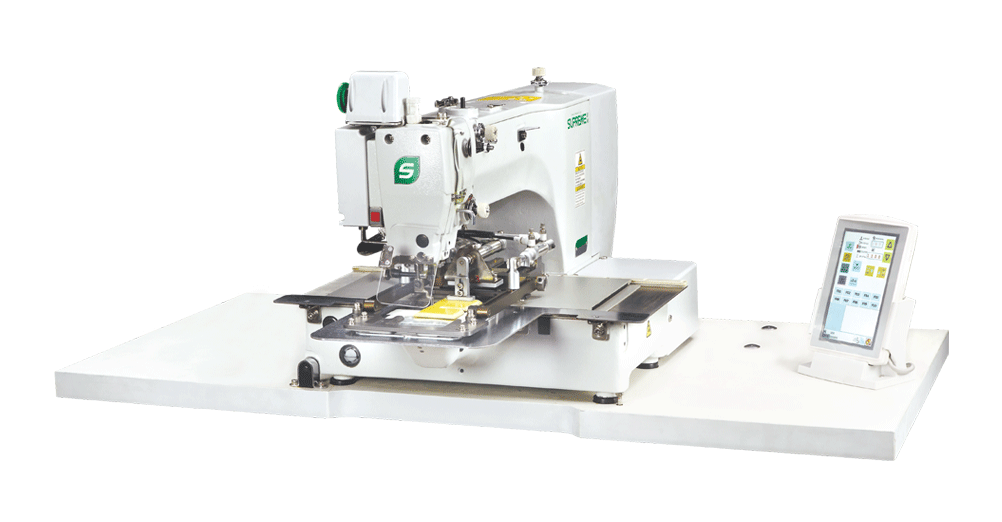

SP-1310AS-H/PB

Automatic Sewing Leather Tag Machine

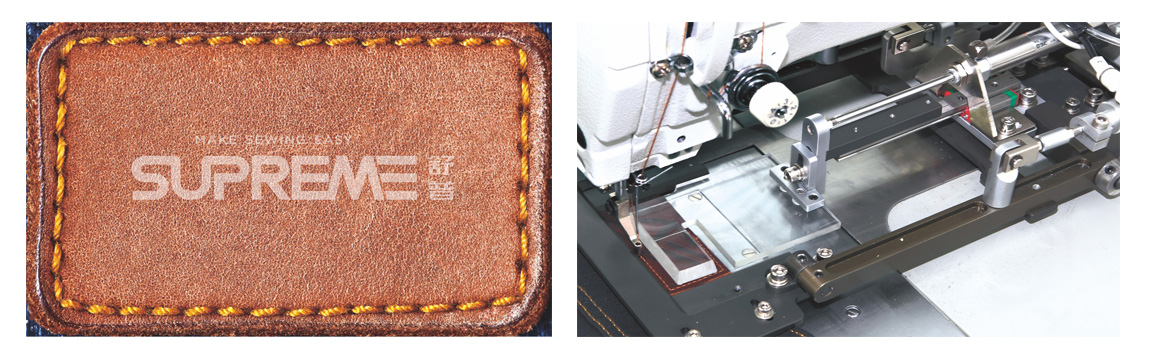

It is suitable for sewing leather tags or signs for luggage and clothes.The sewing range is 130×100mm.The sewing platform

is specially designed,which can provide suitable sewing location for sewing materials,with simple and flexible operations.

Characters

  • high efficiency ,high quality
  • Flexible and simple operation
  • Quick, easy and precise
  • Low power consumption,high effciency

High efficiency and high quality

Traditional plain sewing of leather tags has output of 60 tags per hour.However,SUPREME automatic sewing leather tag machine can process a leather tag every 4 seconds,900 tags every hour,which improves productivity by 15 times.

Rapid and simple operating system

Touch screen operating system, facilitates pattern editing and data management. It has good compatibility, which is compatible with 210D/210E and BA tricks. At the same time, it has functions of dual patterns making and modification.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot drive method
    Press foot height
    Big foot presser method
    Big foot presser height
    Raising amount by intermittent presser foot
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Customer program amount
    Recyle programme No.
    Motor
    Power
    Air pressure
  • SP-1310AS-H/PB
    Sing-needle flat seam
    2,700 rpm
    Max.130×100mm
    Intermittent feeding(Pulse motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    Maximum 500000stitches in inner storage
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Single phase 100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
