Product Introduction

SP-KN-03

KN Earloop Welding

  • SP-KN-03

Automatic feeding ,ultrasonic welding and automatic collection in one time ,30pieces/mir

Examples show

MASK

Features

  • Servo system improves stability ,low defect
  • Auto-counting controls productivity effeciency and process
  • Accurate earloop position and ultrasonic four points welding

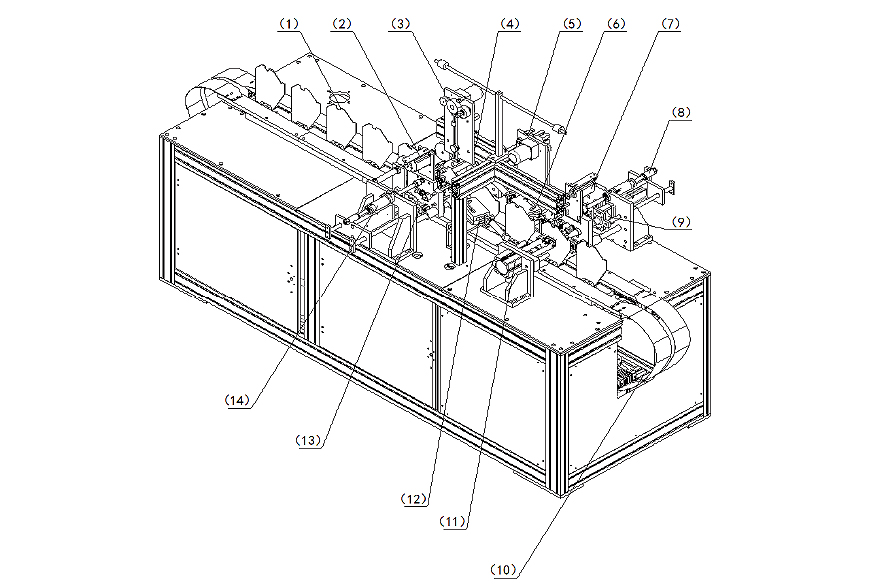

Structure

  • Mask Positioning
  • Earlooop rotating mechanism
  • Earloop threading
  • Feeding plate Position
  • Earloop Threding
  • Earloop Cut
  • Earloop Rotating
  • Ultrasonic pushing mechanism
  • Ultrasonic mechanism
  • Feeding Plate position
  • Earloop cut mechanism
  • Ultrasonic mechanism
  • Ultrasonic pushing mechanism

Technical Parameters

  • Model
    Model
    Power
    Size
    Earloop Length
    Ultrasonic
    Phase
    Air pressure
  • SP-KN-03
    KN-03
    2500W
    2320*1120*1600mm
    170mm
    20KHZ
    single phase
    0.5Mpa

Download

Is this the machine you are looking for ?
