Product Introduction

SP-K1-04

Disposa ble mask machine 1+2 model

  • SP-K1-04

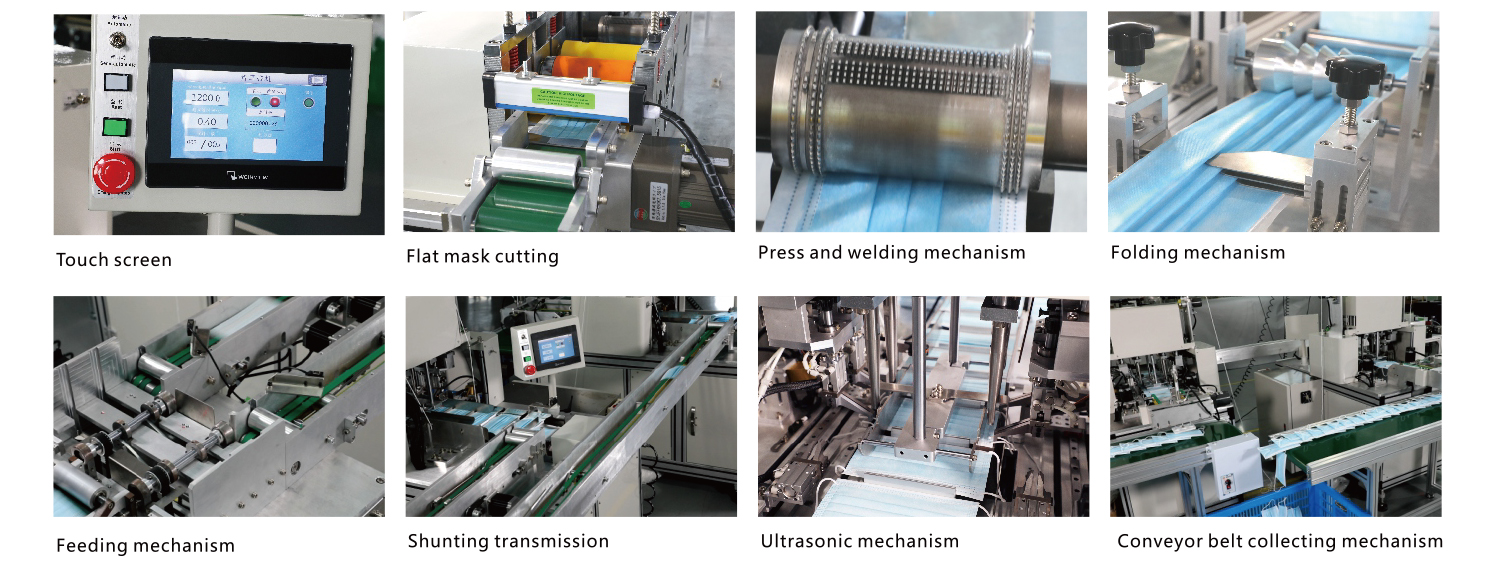

one disposable face mask slicer machine matches to 2 sets of ultrasonic earloop welding machines, the whole process automatically controlled,piece formed, nose pin mounted, ultrasonic ear loop welded, collector counting, identifying and supplying mask pieces automatically to 2channels, finished face mask off the production line once time. productivity 100-120pcs per minute

Features

  • Servo control system improves efficiency and decrease defect
  • Feeding by roll improves accuracy of position, minimizes width of material and saves cost
  • Speed is adjustable by alternative-frequency

  • Automatic counting, tolerance +/- 1mm, uniform size, controllable length
  • Masks were delivered accurately and separately into feeding position of welding machines
  • UItrasonic welding, 4 points welding complete in one time

Technical Parameters

  • Model
    Model
    Size
    Mask size
    Loop length
    UItrasonic
    Drive method
    Motor rpm
    Power
    Air pressure
  • SP-K1-04
    K1-04
    175x95 mm
    4000x 710x 2000 (mm)、 2950x 1400x 1520 ( mm)
    76~600mm
    20 KHZ
    220V 50HZ
    0.5 Mpa、1.8L/min
    6150x2900 mm
    520kg
