Product Introduction

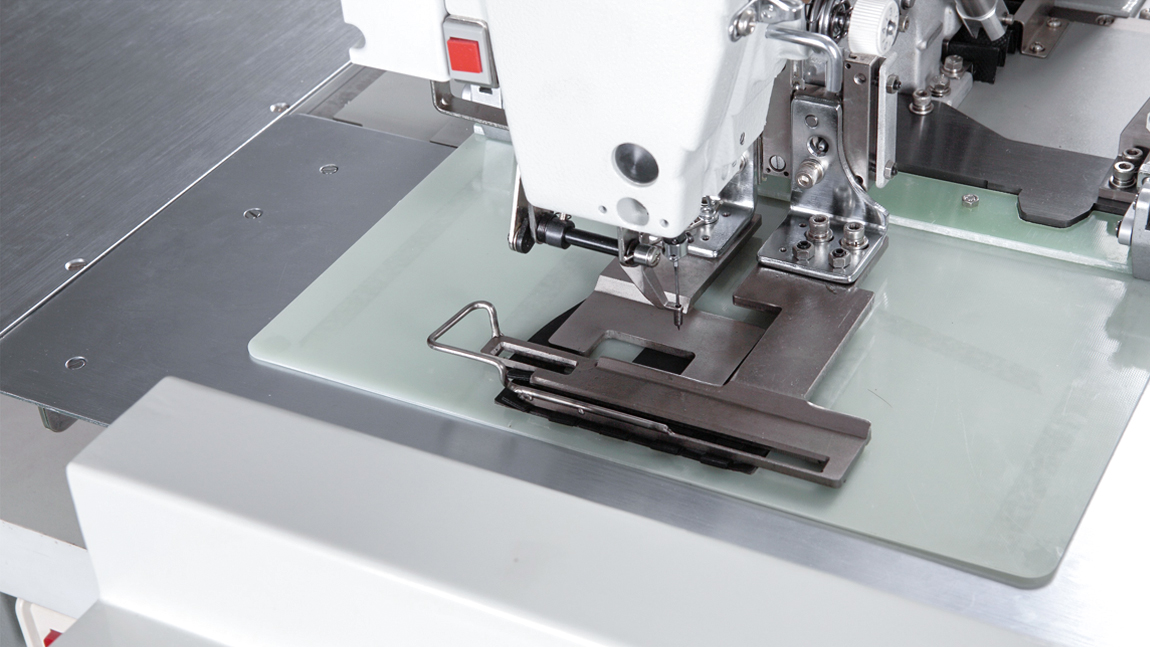

SP-2210AS-H/ZD

Multi lace loop stitching solution


Advantages

  • Compared with traditional sewing, it has beautiful stitches and low labor cost without the needs for skilled operators.
  • Automatic feeding, automatic folding, automatic cutting through hot cutting or cold cutting, automatic sewing and automatic receiving.
  • The sewing range and lace loop width can be customized according to customer needs.

Efficiency

  • Lace loop Width 8~12mm
  • Lace loop Length 8~12mm
  • Pitch: 0.05~12.7mm

Application

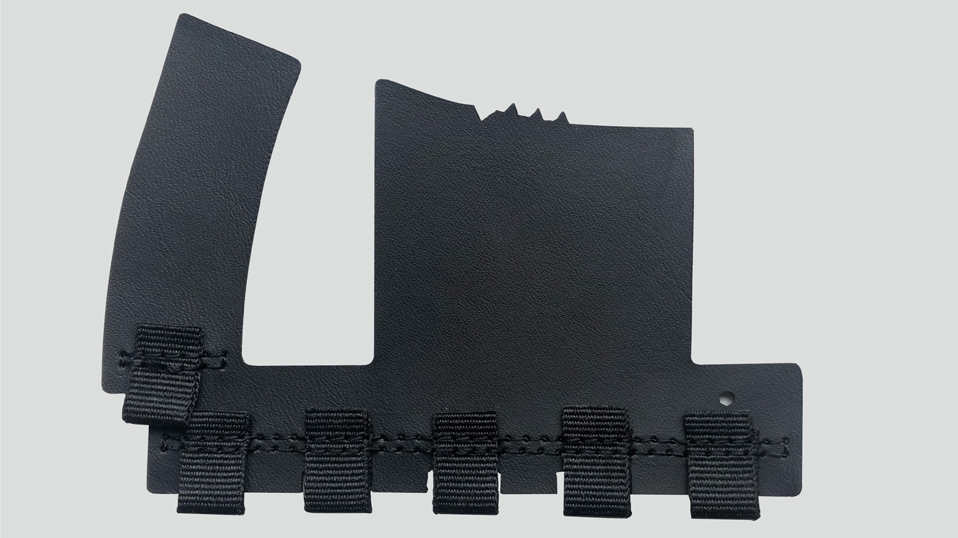

Used in the processing of various footwear, 1~6 lace loop can be sewn at one time.

Technical Parameters

  • Model
    Highest sewing speed
    Webbing width
    Webbing length
    Number of webbing
    Air pressure
    Weight
    Dimensions
    Voltage
  • SP-2210AS-H/ZD
    2,700 rpm
    8-12mm
    14-22mm (After folding in half)
    1-6root
    0.5Mpa 1.8L/min
    200kg
    1300x1000x1600mm(L*W*H)
    Single phase 200~240V

Download
