Product Introduction

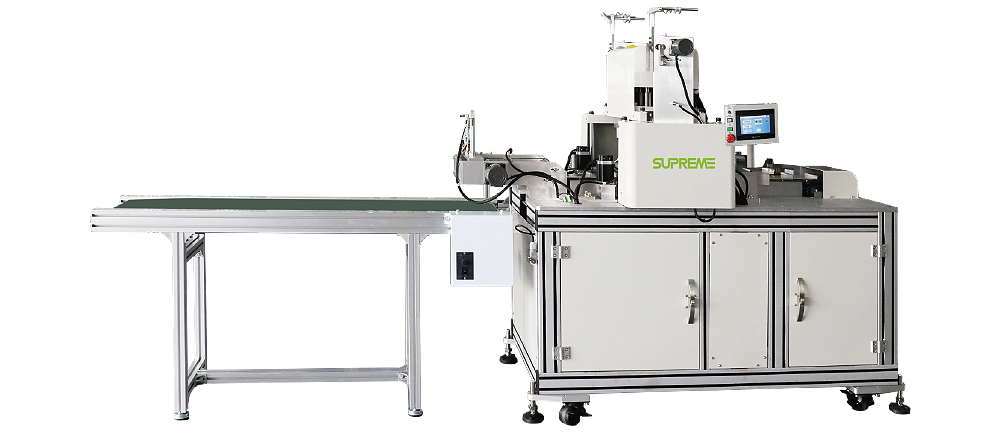

SP-K1-02

3 Layers mask ear loop machine


Features

  • Servo control system improves efficiency and decreases defects
  • Automatic loading system, no need for manual

  • Automatic counting visible system
  • Ultrasonic welding, 4 points welding completed simultaneously

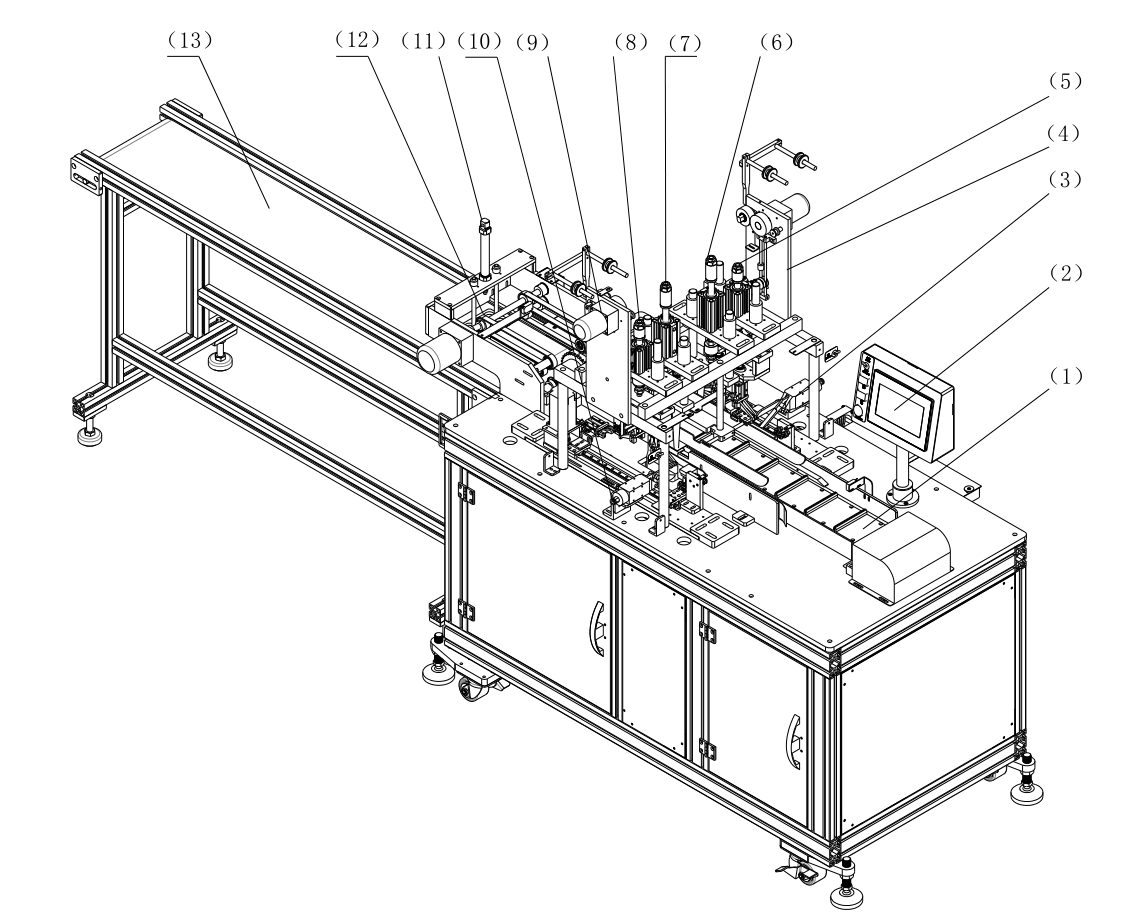

Structure

  • 1. Positioning mechanism

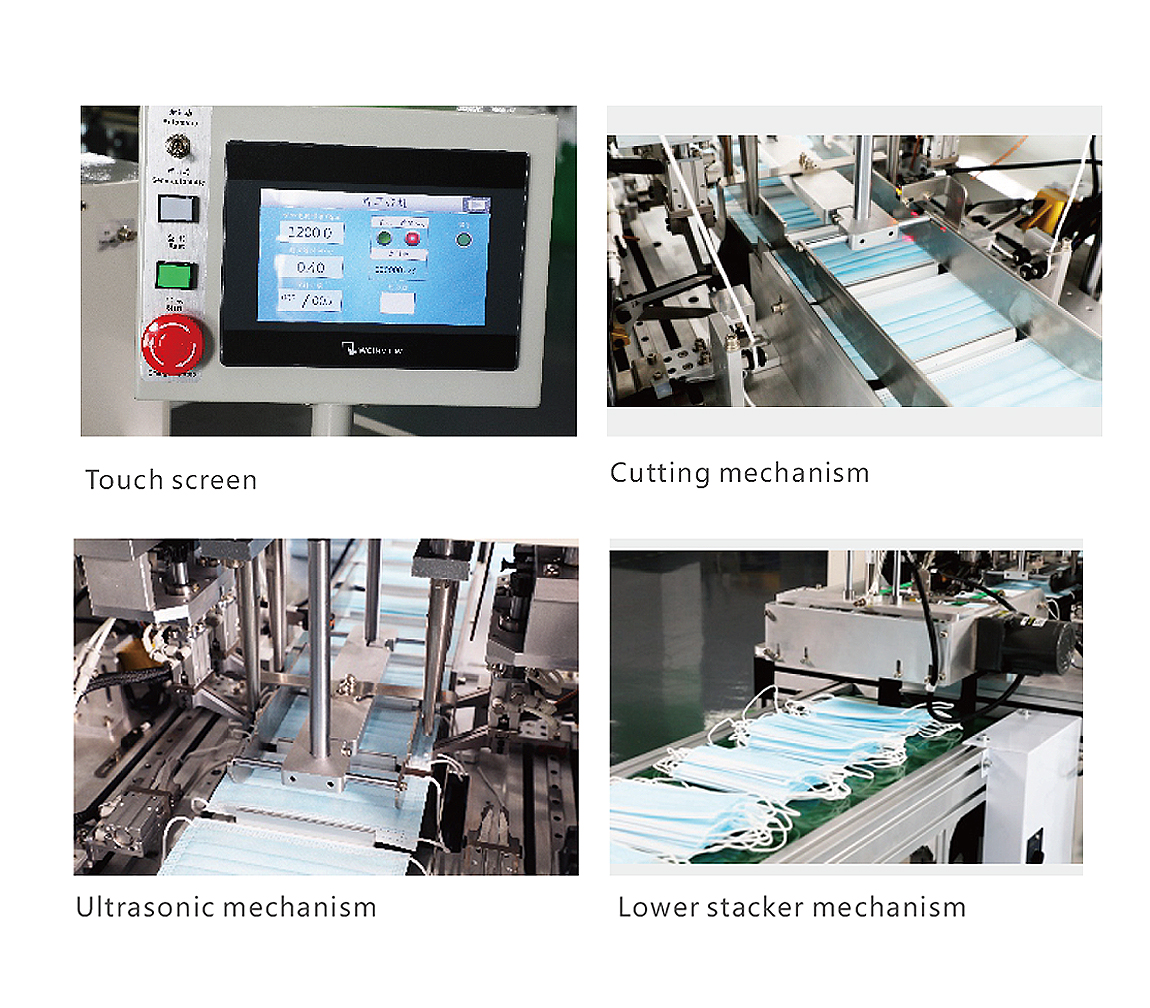

  • 2. Operation Panel
  • 3. Right cutting mechanism
  • 4. Right Ear strap
  • 5. Right clip ear with rotating mechanism
  • 6. Right ultrasonic mechanism
  • 7. Left ultrasonic mechanism
  • 8. Left clip ear with rotating mechanism
  • 9. Left Ear strap
  • 10. Left cutting mechanism
  • 11. Stacker
  • 12. Upper stacker mechanism
  • 13. Lower stacker mechanism

Technical Parameters

  • Model
    Model
    Size
    Mask size
    Loop length
    Ultrasonic
    Drive method
    Motor rpm
    Power
    Air pressure
  • SP-K1-02
    SP-K1-02
    2950*1400*1520mm
    175*95mm
    Lenth 175mm
    20KHZ
    Hybrid drive
    1500 Rpm
    Single phase
    0.5Mpa
