Product Introduction

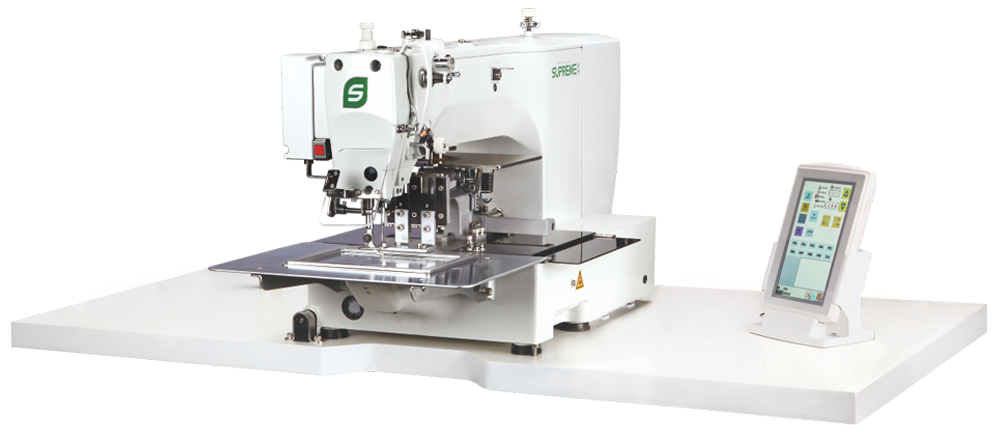

SP-1510BS

Electronic Pattern Sewing Machine

  • SP-1510BS-HS/MS
  • SP-1510BS-H/M/X

Electronic pattern sewing machine SP series,with highest speed ,high efficient and beautiful sewing lines ,can be

flexibly applied to wide range of sewing.Adopting energy saving technology ,it saves more energy

and is more environmental-friendly.

Characters

  • Tension sewing
  • High quality sewing
  • Standard break sensor
  • Low power consumption, high speed, high efficiency
  • Fast,convenient pattern edition
  • Strengthening machine needle penetration force
  • Superior Modified space
  • Two types of editing softwares.

High quality sewing

Stable, beautiful appearance and high quality sewing stitch, the input data can be set for each pulse of 0.05mm high resolution. It can sew beautiful smooth curve and slash. And can sew simple embroidery, embroidery machine is generally very difficult to be competent in the thick fabric on the embroidery can be accomplished.

Tension sewing

Due to change of intermittent foot presser height based on fabric thickness,the intermittent presser foot works according to certain intermittent pressing action.After this action,it prevents the inadequate positions of the foot presser while achieves concord sewing of surface line and bottom line .The rising amount can be adjusted by operation in the panel or software.Also this is suitable for different sewing programs.

Low power consumption

Using computerized direct drive motor of small size ,this machine prevents power from consuming during transmitting.The power consumption is decreased by 50%, it’s programmable machine with lowest power consumption.

High speed, high efficiency

With the highest sewing speed in the industry (2700rpm) and the use of energy-saving motor, it saves energy to a better degree and improves the stitching efficiency.

Fast and convenient program editining

Using PD3000 programming software, it is easy to edit pattern, and GB is more compatible with DA/DE, PLK format pattern editing, which simplify the process of pattern editing. With large screen LCD interface and new touch screen control , you can complete the man-machine dialogue using finger. You can create and editing the data easily according to the icons and orders.

Strengthening machine needle penetration force

High power direct drive motor makes the machine needle penetration force more powerful. The speed of start and stop is faster. The speed 2700rpm improves the efficiency to a further extent.

Standard broken-needle sensor

Can be used to detect broken thread .It automatically stops and informs the operator once it detected broken thread.

Drive mode of foot presser--S

  • S:Solenoid-driven

Drive mode of foot presser--A

  • Pneumatically driven
  • Using the SMC cylinder

Superior modifing space

Devices as sliding device and flip flop device can be installed on the machine,which has superior space for modification.It simplifies complicated procedures ,saves the labor of stable stitching and satisfies the demand of combination of multi-procedures.

Optional--Industrial scanner

Industrial scanner can directly transfer decoded content to computer system by USB.It will be more convenient to match the correct pattern by scanner while sewing different patterns and materials.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding device
    Stitch Length
    Maximum stitch amount
    Presser foot drive method
    Press foot height
    2- step presser foot
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Hook
    Thread Wiper
    Cutting device
    Data storage method
    Weight
    Power
    Air pressure
    Motor
  • SP-1510BS-HS/MS
    Single-needle flat seam
    2,700 rpm
    Maximum 150×100mm
    Intermittent feeding (driven by pulse motor)
    0.05 - 12.7mm
    20,000 needles/1 pattern
    S:Pulse motor drive;Pneumatic
    S:maximum 25 mm ; maximum 30 mm
    All-in-one presser foot
    22 mm
    0 or 2 - 10 mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB or Flash Card
    Head:about 108 kg Operating panel:about 0.6 kg control box:14.2 - 16.2 kg (according to different export countries)
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
    AC servomotor 550W
  • SP-1510BS-H/M/X
    Single-needle flat seam
    2,700 rpm
    Maximum 150×100mm
    Intermittent feeding (driven by pulse motor)
    0.05 - 12.7mm
    20,000 needles/1 pattern
    S:Pulse motor drive;Pneumatic
    S:maximum 25 mm ; maximum 30 mm
    All-in-one presser foot
    22 mm
    0 or 2 - 10 mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    USB or Flash Card
    Head:about 108 kg Operating panel:about 0.6 kg control box:14.2 - 16.2 kg (according to different export countries)
    Single phase 220V,3-phase 380V
    0.5 Mpa 1.8 L/min
    AC servomotor 550W
