Product Introduction

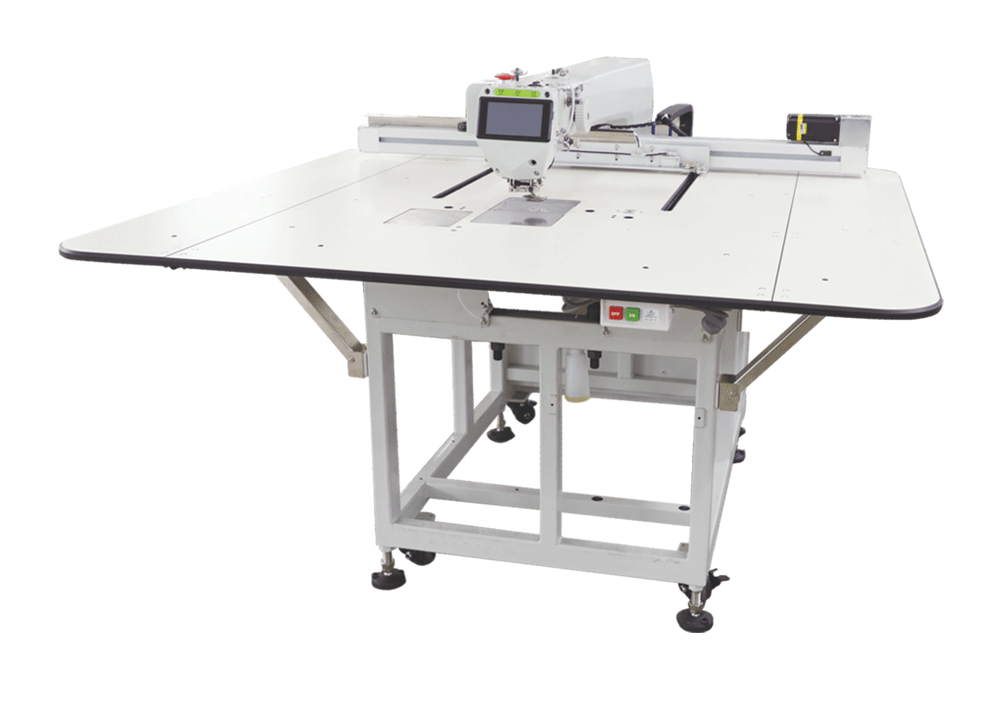

SP-S608/S610

Smart template sewing machine

  • SP-S608
  • SP-S610

Based on S913 series intelligent template machine, it has characteristics of small size and fast speed,
and is mainly applied to the production requirements of clot hing streamline technology.

Specification

  • SP-S608-M Thin material
  • SP-S608-H Thick
  • SP-S608-M/J Thin/laser
  • SP-S608-H/J Thick/laser
  • SP-S610-M Thin material
  • SP-S610-H Thick
  • SP-S610-M/J Thin/laser
  • SP-S610-H/J Thick/laser

Product Features

  • Pioneering oil supply system (basic type):Innovative oil supply structure, stable oil supply power and flexible adjustment.
  • Intelligent mid presser:Enable jumping sewing of materials with different thickness, with the maximum follow-up stroke at 7 mm.

Product Features

  • Screw rod drive system:Precision industrial-grade drive system
  • Intelligent closed-loop sewing system:The closed-loop sewing system enable the real-time monitoring of input and receiving signals during sewing, the intelligent feedback on operation status, and automatic adjustment of the control system.

Technical Parameters

Model and Standard +

  • Model
    Rotary hook
    Body
    Drive system
    Mounting method of template
    Power/air pressure/air consumption
    Sewing range
    Stitch
    Pitch
    Needle height
    Presser stroke
    Needle model
    Max. Sewing speed
    Electronic control system
    Thread breakage detection
    Template recognition function
    Supporting file formats
    Number of data stored
    Screen size
    Screen chromatic number
    Screen type
    Resolution
    Touch screen
    Size
    Packing container dimension
    N.W of product
  • SP-S608
    Imported rotary hook/shuttle hook
    Integrated shell produced by case machinery, a leading brand in the indus try
    Screw rod+ synchronous belt
    Clamping *
    Single phase 200-240v/0.5mpa/ 1.8l/min
    80*60
    Single-needle lock stitch
    1mm-12.7mm
    23mm
    2.5mm-7mm
    DPx17
    3000rpm
    Tasc447 intelligent closed-loop control system
    Electric conductivity type mechanical thread breakage sensor
    Rfid intelligent recognizer*
    NSP(DHP/DXF/DST/PLT/VDT)
    999 patterns
    5”
    16.7 million colors
    TFT LCD(IPS)
    800*480
    Touch screen
    L1300*W1500
    L1470*W1400*H1350
    280-320Kg
  • SP-S610
    Imported rotary hook/shuttle hook
    Integrated shell produced by case machinery, a leading brand in the indus try
    Screw rod+ synchronous belt
    Clamping *
    Single phase 200-240v/0.5mpa/ 1.8l/min
    100*60
    Single-needle lock stitch
    1mm-12.7mm
    23mm
    2.5mm-7mm
    DPx17
    3000rpm
    Tasc447 intelligent closed-loop control system
    Electric conductivity type mechanical thread breakage sensor
    Rfid intelligent recognizer*
    NSP(DHP/DXF/DST/PLT/VDT)
    999 patterns
    5”
    16.7 million colors
    TFT LCD(IPS)
    800*480
    Touch screen
    L2000*W1160
    L1470*W1400*H1350
    280-320Kg
