Product Introduction

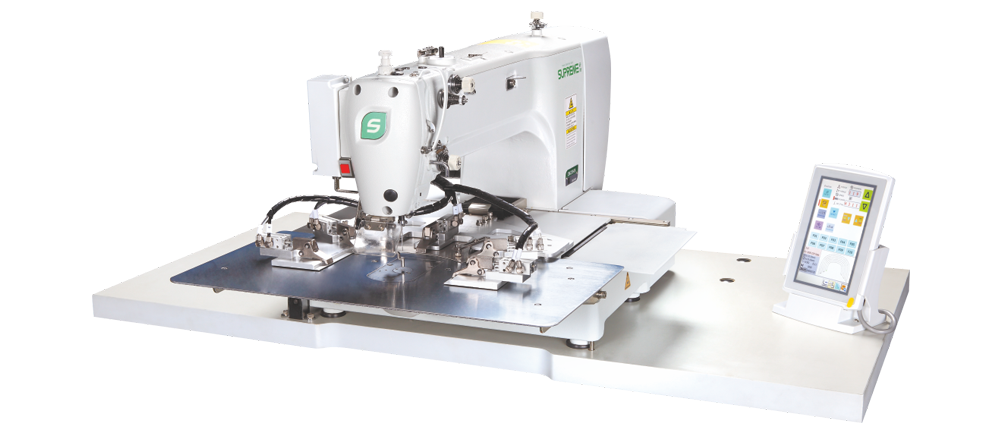

SP-2212BS/3020AS-MY

Cap visor pattern tacker

  • SP-2212BS-MY
  • SP-3020AS-MY
  • Video1
  • Video2

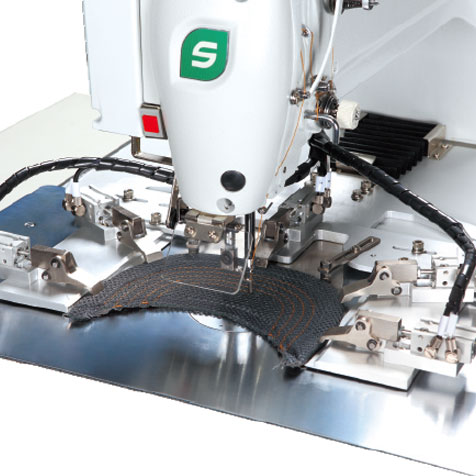

Applied in various cap visor stitching, it is easy to operate and position .Using special cap visor griping claw,

it stitches even and beautiful trace .This machine improves efficency without requirement of senior worker.

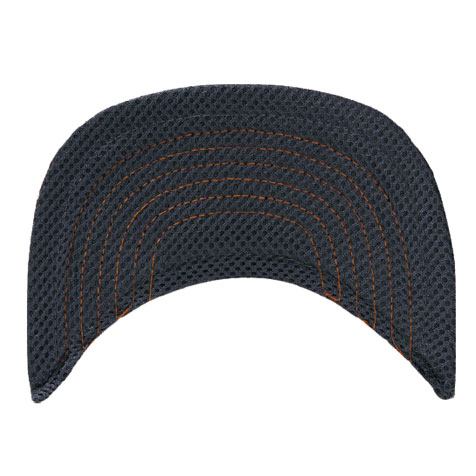

Samples 1

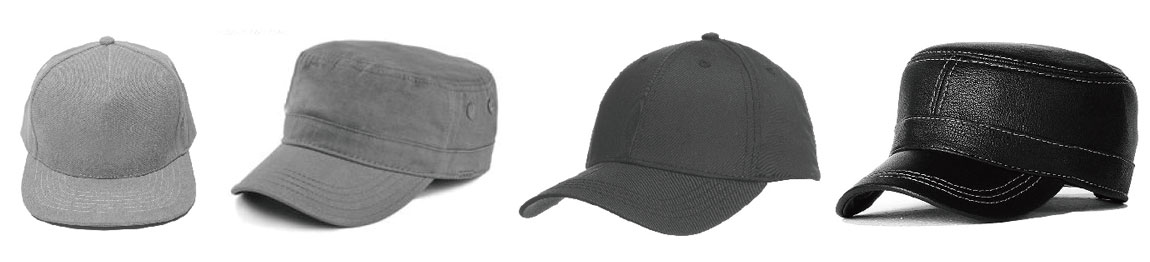

Samples 2

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding device
    Stitch Length
    Maximum stitch amount
    Presser foot drive method
    Press foot height
    2- step presser foot
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Hook
    Thread Wiper
    Cutting device
    Tension device
    Data storage method
    Motor
    Weight
    Power
    Air pressure
  • SP-2212BS-MY
    Sing-needle flat seam
    2,700 rpm
    Max.220×120 mm
    Intermittent feeding(Servo motor drive mode)
    0.05 - 12.7mm
    20,000 needles/1 pattern
    Pneumatic
    Max.30 mm
    Divided presser foot
    22 mm
    0 or 2-10mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    Elctric tension device
    USB or Flash memory (You can sew pattern with CF card)
    AC servomotor 550W
    Head:about 108 kg Operating panel:about 0.6 kg control box:14.2 - 16.2 kg (according to different export countries)
    Single phase 220V Three-phase 380V
    0.5 Mpa 1.8 L/min
  • SP-3020AS-MY
    Sing-needle flat seam
    2,700 rpm
    Max.300×200 mm
    Intermittent feeding(Servo motor drive mode)
    0.05 - 12.7mm
    20,000 needles/1 pattern
    Pneumatic
    Max.30 mm
    All-in-one presser foot
    22 mm
    0 or 2 - 10 mm(Factory defaults:3mm)
    Double Shuttle Hook
    Standard facility
    Standard facility
    Elctric tension device
    USB or Flash memory (You can sew pattern with CF card)
    AC servomotor 550W
    Head:about 135 kg, Operating panel:about 0.6 kg control box:14.2 - 16.2 kg (according to differentexport countries)
    Single phase 220V Three-phase 380V
    0.5 Mpa 1.8 L/min
