Product Introduction

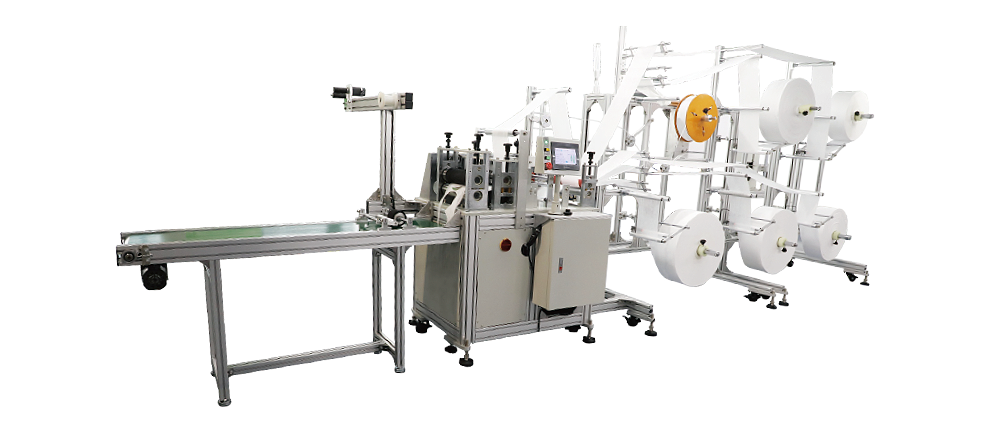

SP-KN-01

Cutting Machine


Automatic feeding ,press to shape ,build-in nose bridge ,left-right cut ,waste material collection -full automatic operation .80 pcs/min

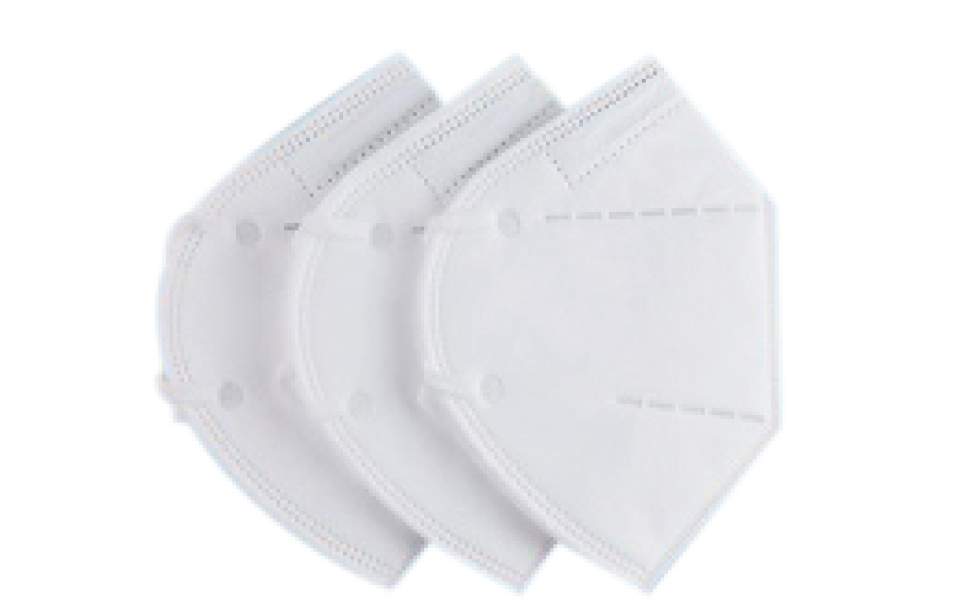

MASK

Cutting Machine

Features

  • Servo control syetem improves efficiency and decrease defect Feeding by roll improves accuracy of position ,minimizes width of material and saves cost

  • Speed is adjustable by alternative - frequency
  • Automatic counting ,tolerance +/- 1mm, uniform size ,controlable length

Technical Parameters

  • Model
    Model
    Production
    Motor power
    Size
    Ultrasonic
    Power
    Air pressure
    Equipment weight
    Equipment operator/station
  • SP-KN-01
    SP-KN-01
    60-80 per minute
    2500W
    4700*1500*2000mm
    20KHZ
    Single phase
    0.5Mpa
    2800KG
    1
