Product Introduction

SP-1310AS-H/CH

Sliding Pattern Tacker Machine

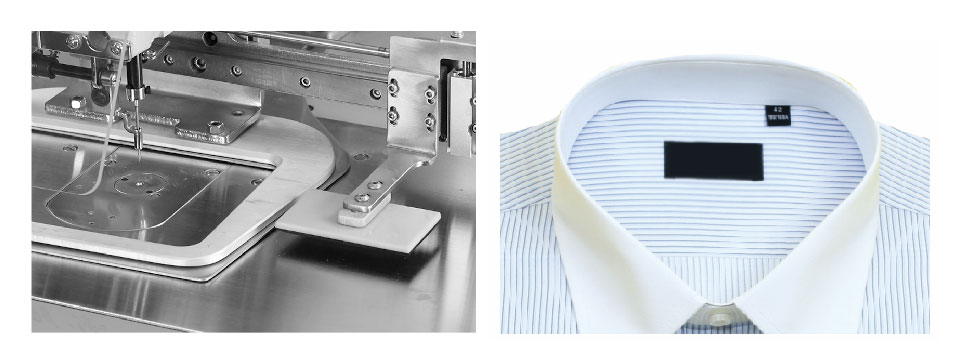

To prevent the material from moving while sewing, the sliding device slides to fix the material designed, which saves steps adopted in traditional sewing. This machine, with a sewing area 130mm×100mm, saves energy and improves efficiency greatly.

This special device is also compatible with SP-2210GB-01.

Characters

  • Sliding pattern tacker machine is especially designed for clothes labels and bag patterns.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding device
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    2- step presser foot
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Customer program amount
    Recyle programme No.
    Motor
    Weight
    Power
    Air pressure
  • SP-1310AS-H/CH
    Sing-needle flat seam
    2,800 rpm
    Max.130×100mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Integrated presser foot; Divided presser foot
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    carton:Head Control box:about 104kg、Control box:20kg、table&stand:30kg;wooden case:about 160kg
    Single phase 100~120V、200~240V、3-phase 200~240V、380~415V、350V
    0.5Mpa、1.8L/min
