Product Introduction

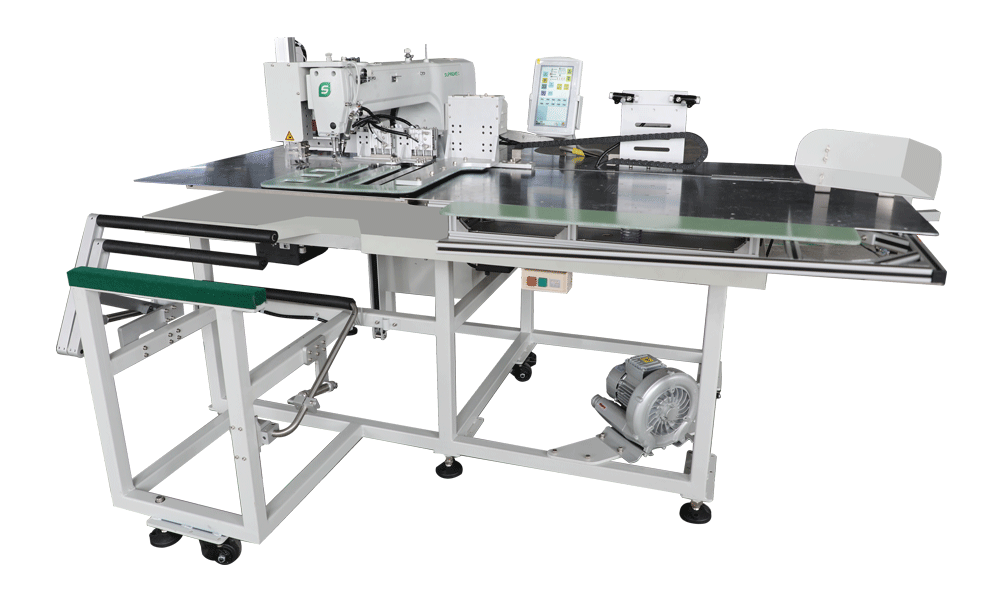

SP-3525BS-M/MJ

Automatic Placket sewing machine

  • SP-3525BS-M/MJ

With help the laser mark, operator can positions the material more accurate and easier.Since the machine feeds,
sews,cuts (single knife /double knife ) and collects automatically ,one worker can operate two machines which improves
both quality and performance.

Characters

13 seconds to finish sewing and opening a POLO shirt

Technical Parameters

  • Model
    Model distinguish
    Line
    Highest sewing speed
    Sewing area
    Feeding method
    Stitching length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot drive method
    Work clamp height
    2- step presser foot
    Big foot presser method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Scavenging device
    Cutting device
    Customer Program Amount
    Recycling program amount
    Motor
    Weight
    Power
    Air pressure
  • SP-3525BS-M/MJ
    Sing-needle flat seam
    2700 rpm
    Max 45×200mm
    Intermittentfeeding ( Pulse motor drive mode )
    0.05-12.7mm
    20000 needles/1 pattern
    Maximum 500000stitches in inner storage
    A-Pneumatic
    Max 30mm
    2-section presser foot
    All-in-one presser foot
    first section height 15mm,Second height 10mm
    0 or 2-10mm(Factory defaults:3mm)
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    About 230kg
    Single phase 200~240V
    0.5Mpa、1.8 L/min
