Product Introduction

SP-2210MJ-ASN/ADN

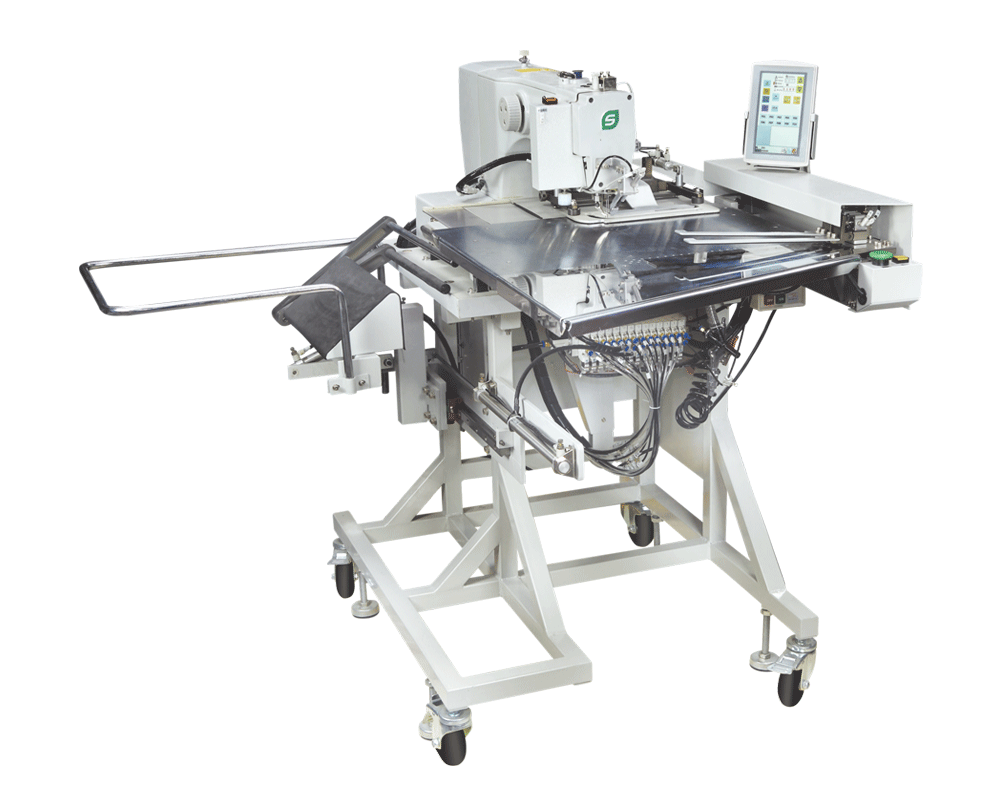

Automatic J Stitching Machine(Single/Double Needle)

  • SP-2210MJ-ASN
  • SP-2210MJ-ADN

stitch sewing machine : is for J stitch sewing on jeans, leisure trousers,uniforms,etc.

The J stitch pattern can be programmed by specific programming soft which can meet the needs for

different trousers. And also can be used on the dotted sewing,pocket pattern sewing.

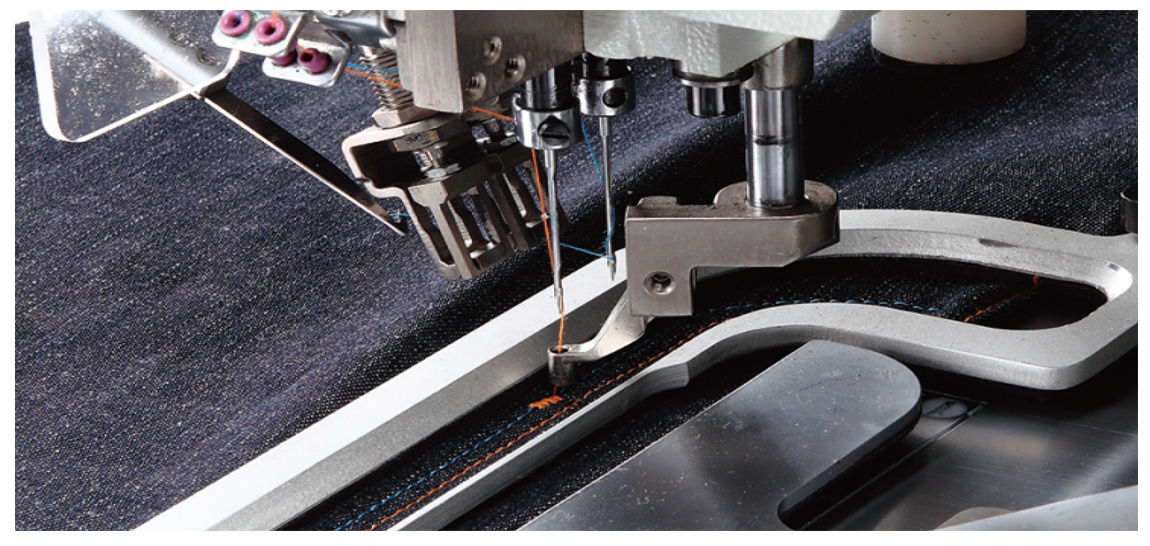

Originality design to avoid the error

It can sew by the use of lines with two colors,so as to avoid the positioning errors generated by secondary stitch position of the sewing machine. At the same time of completion of flat stitching, tacking and decorative lines and other special stitches can be synchronized to complete.

Full automatic high efficient and stable

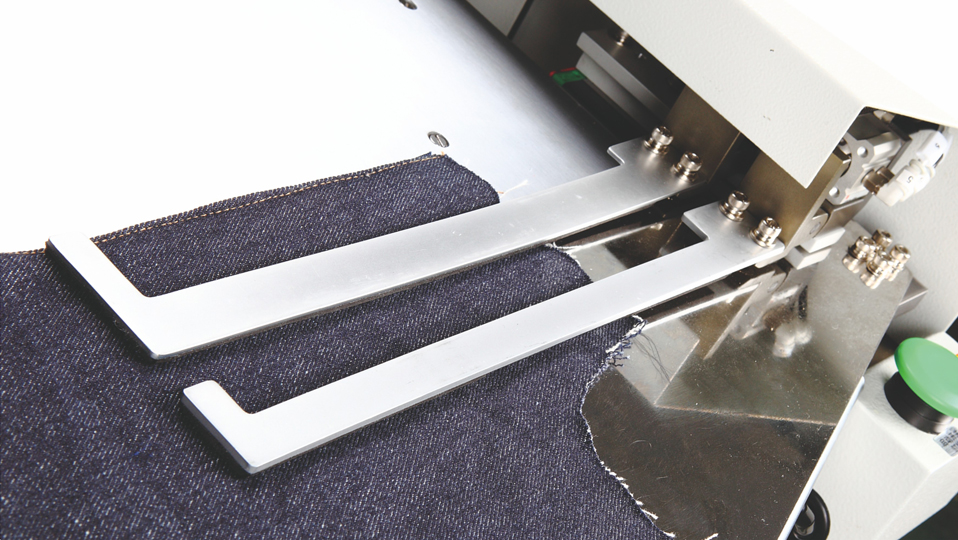

The equipment can realize automatic positioning, automatic feeding, automatic material, automatic sewing, etc.. One person can simultaneously operate two machines.

Technical Parameters

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Presser foot drive method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Customer program amount
    Recyle programme No.
    Motor
    Power
    Air pressure
  • SP-2210MJ-ASN
    Sing-needle flat seam
    2,700 rpm
    Max.220×100 mm
    Pneumatic
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    50
    9
    AC servomotor 550W
    Single phase 200~240V
    0.5Mpa、1.8L/min
  • SP-2210MJ-ADN
    Sing-needle flat seam
    2,700 rpm
    Max.220×100 mm
    Pneumatic
    22mm
    0 or 2-10mm(Factory defaults:3mm)
    50
    9
    AC servomotor 550W
    Single phase 200~240V
    0.5Mpa、1.8L/min

Download
