Product Introduction

SP-430G-JDJ

Automatic bag belt sewing machine


Advantages

  • One machine has multiple functions, and can be used as a tape cutting machine through simple settings.

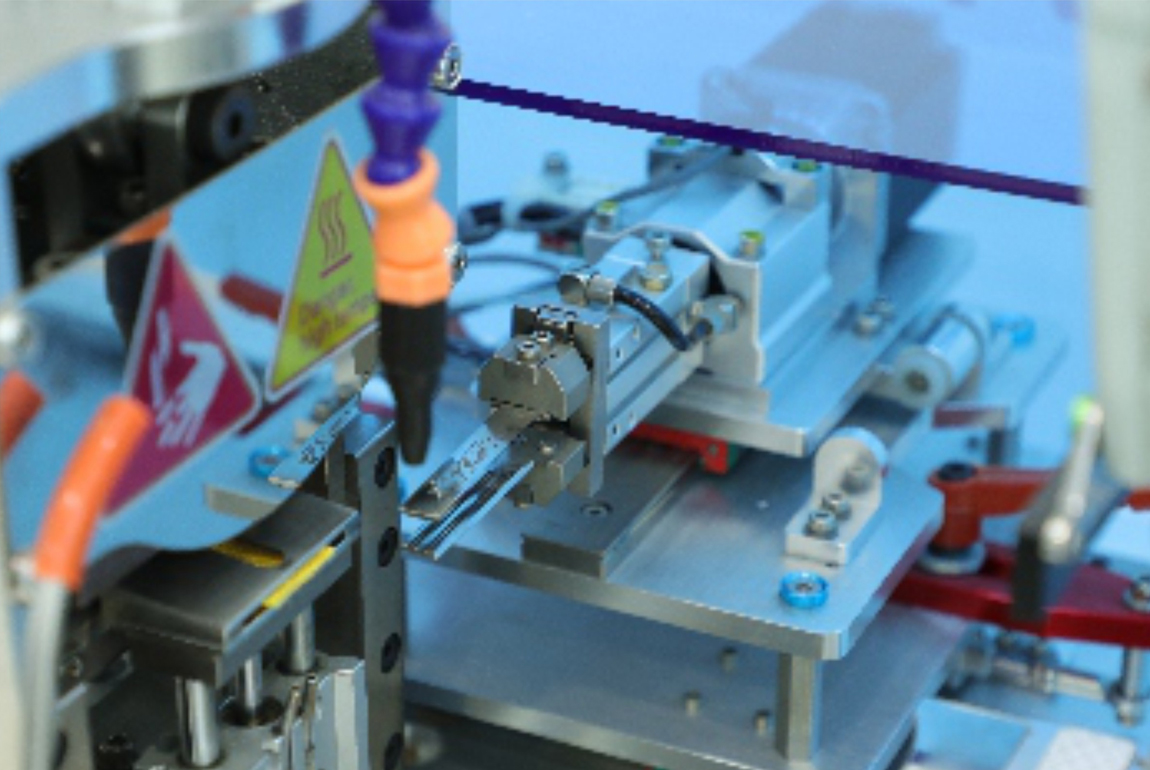

  • Two cutting modes, cold cutting and hot cutting, can be switched according to actual needs.
  • Adjustable deviation correction function, accurate positioning before sewing, to ensure that the sewing ribbon head is neat and beautiful.

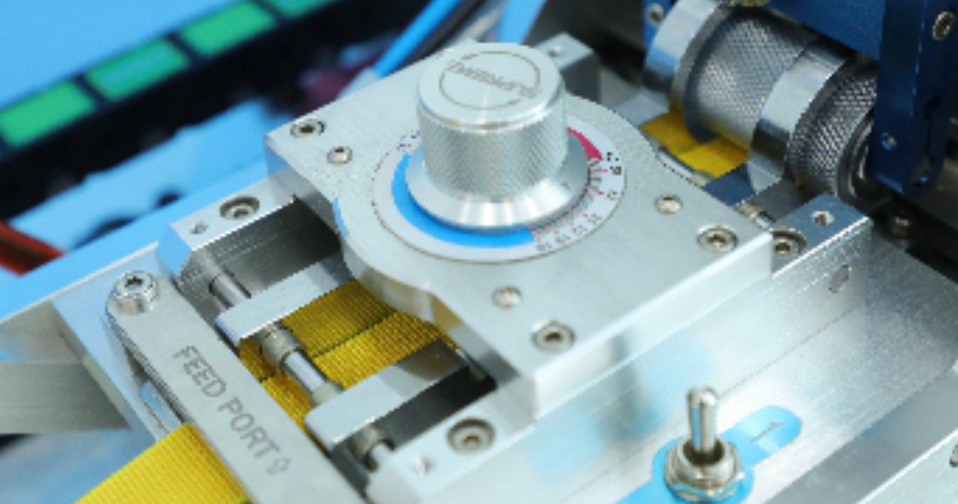

  • Stepless width and narrow device (patented product), quickly adjust the feeding width. Keep the webbing centered at all times.
  • Self-testing function, timely detection of faults and hidden dangers, providing fast and accurate service for maintenance.

Efficiency

Automatic feeding, cutting, coiling, sewing, receiving, and counting are completed at one time, and the whole process is automated.

Application

Suitable for folding and sewing of all kinds of bags and tape heads

Technical Parameters

  • Model
    Highest sewing speed
    Sewing width
    Folding range
    Voltage
    Air pressure
    Sewing length
    Heat cutter power
  • SP-430G-JDJ
    3000rpm
    16-40mm
    10-60mm
    AC200V 50Hz
    0.5Mpa、1.8L/min
    50-999mm
    400W

Download
